QPMR 100404PDN-HQ-M IC328
Super positive square milling inserts for machining aluminum, stainless steel and high temperature alloys (QUAD2000).
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| Application | | Facing | Shouldering | Slotting | | Cutting Edge Material | Carbide |

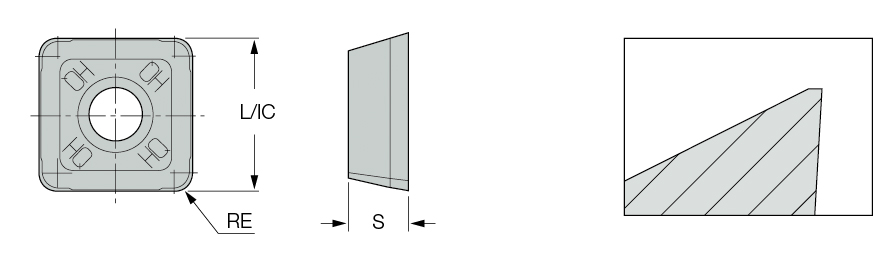

| Insert Length (INSL) | 10.35 mm | Tool Type | Mill AL, HTA Geometric Inserts |
| Corner Radius (RE) | 0.4 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Insert Thickness (S) | 4.48 mm | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Metric |
| Coating | TiCN | Body Material | Carbide |
| Grade | IC328 | Unit | M |
Product Features
| Family Description | Super positive square milling inserts for machining aluminum, stainless steel and high temperature alloys (QUAD2000). | FamilyName | QPMR 1004-HQ-M |
| Remarks | Performs 90° Milling limited to a 2mm depth of cut | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0047
Name
Milling Indexable Inserts
FamilyName
QPMR 1004-HQ-M
BrandName
Iscar
