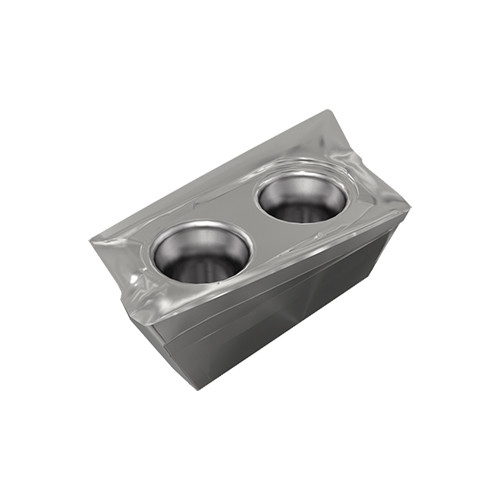

HP ADCR 190604PDFR-P IC28
HELIPLUS milling inserts with 19 mm cutting edge for machining aluminum.
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Cutting Direction (HAND) | Right Hand |
| Application | | Counter Boring | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 22.5 mm | Tool Type | Mill AL, HTA Geometric Inserts |
| Corner Radius (RE) | 0.4 mm | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Depth of Cut Maximum (APMX) | 19.5 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 7.4 mm | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC28 | Unit | M |
| Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
Product Features
| Family Description | HELIPLUS milling inserts with 19 mm cutting edge for machining aluminum. | FamilyName | HP ADCR 1906 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0143
Name
Milling Indexable Inserts
FamilyName
HP ADCR 1906
BrandName
Iscar
