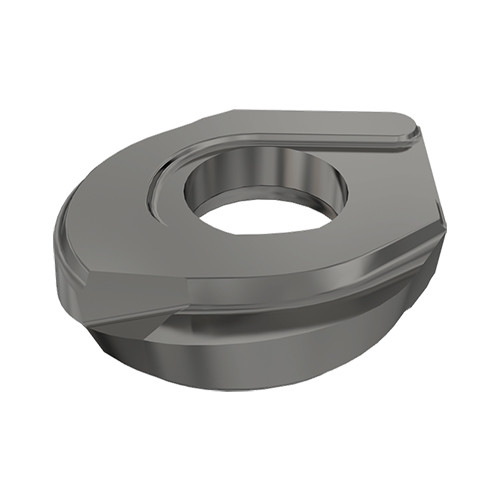

HBR D.62-QF IC908
BALLPLUS, 2 cutting edges (fully effective), 220° spherical cutting profile inserts. Used for profiling, up and down ramping, steep profiles and undercutting. Accuracy is within .0004″. May be used for roughing or finishing applications.
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Application | | Profiling | Rampdown | Undercutting | | Tool Type | Single sided Inserts |

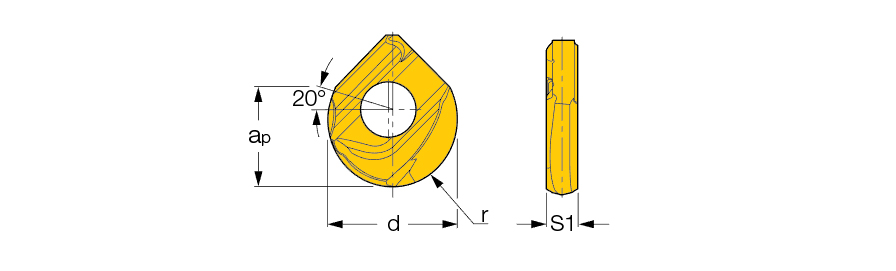

| Corner Radius (RE) | 0.312″ | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.42″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.133″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Unit | I |
| Maximum Feed per Tooth (fz(max)) | 0.008 ″/tooth |
Product Features
| Family Description | BALLPLUS, 2 cutting edges (fully effective), 220° spherical cutting profile inserts. Used for profiling, up and down ramping, steep profiles and undercutting. Accuracy is within .0004″. May be used for roughing or finishing applications. | FamilyName | HBR-QF |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0179
Name
Milling Indexable Inserts
FamilyName
HBR-QF
BrandName
Iscar
