BCR D320-QT IC928
The DROPMILL insert has a straight cutting edge tangent to a round corner. It enables machining of a shoulder with a round corner. A protrusion on the bottom mounts in a mating slot in the pocket to maintain high edge location precision.
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Cutting Direction (HAND) | Right Hand |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | | Cutting Edge Material | Carbide |

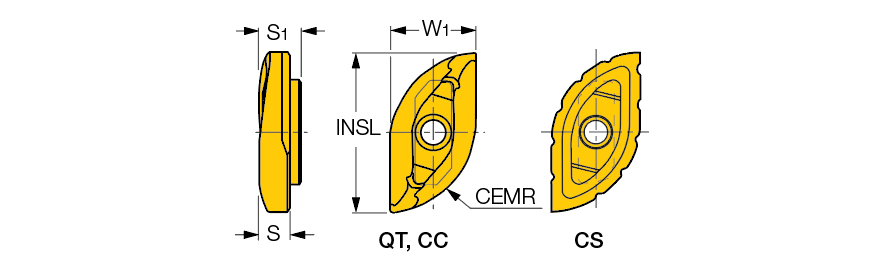

| Insert Length (INSL) | 28 mm | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 16 mm | Minimum Feed per Tooth (fz(min)) | 0.2 mm/tooth |
| Insert Width (W1) | 15.1 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 5.3 mm | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC928 | Unit | M |
| Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
Product Features
| Family Description | The DROPMILL insert has a straight cutting edge tangent to a round corner. It enables machining of a shoulder with a round corner. A protrusion on the bottom mounts in a mating slot in the pocket to maintain high edge location precision. | FamilyName | BCR |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0217
Name
Milling Indexable Inserts
FamilyName
BCR
BrandName
Iscar
