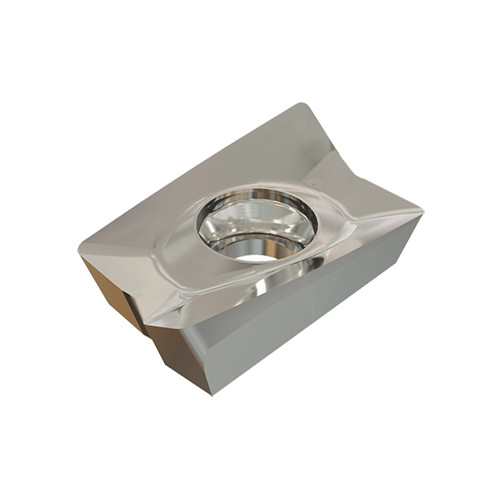

HM90 APCR 100304PDFR-P IC908
HELIMILL, super positive inserts with polished rake for machining aluminum and high temp alloys. P=peripherally ground with a polished rake. DP=polished rake and flank.
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Application | | Countersinking | Drill Mill | Facing | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Tool Type | Mill AL, HTA Geometric Inserts |

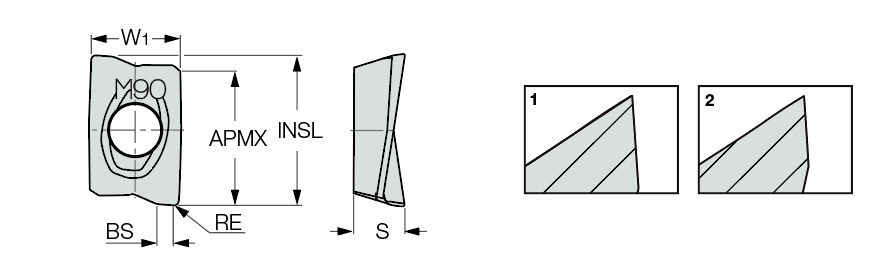

| Insert Length (INSL) | 11.25 mm | Figure | 1 |
| Corner Radius (RE) | 0.4 mm | Minimum Feed per Tooth (fz(min)) | 0.07 mm/tooth |
| Depth of Cut Maximum (APMX) | 9.8 mm | Number of Cutting Edges | 2 |
| Insert Width (W1) | 6.52 mm | Cutting Edge Effective Length (LE) | 10.18 mm |
| Insert Thickness (S) | 3.85 mm | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Unit | M |
| Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
Product Features
| Family Description | HELIMILL, super positive inserts with polished rake for machining aluminum and high temp alloys. P=peripherally ground with a polished rake. DP=polished rake and flank. | FamilyName | HM90 APCR 100304PDFR-P/DP |

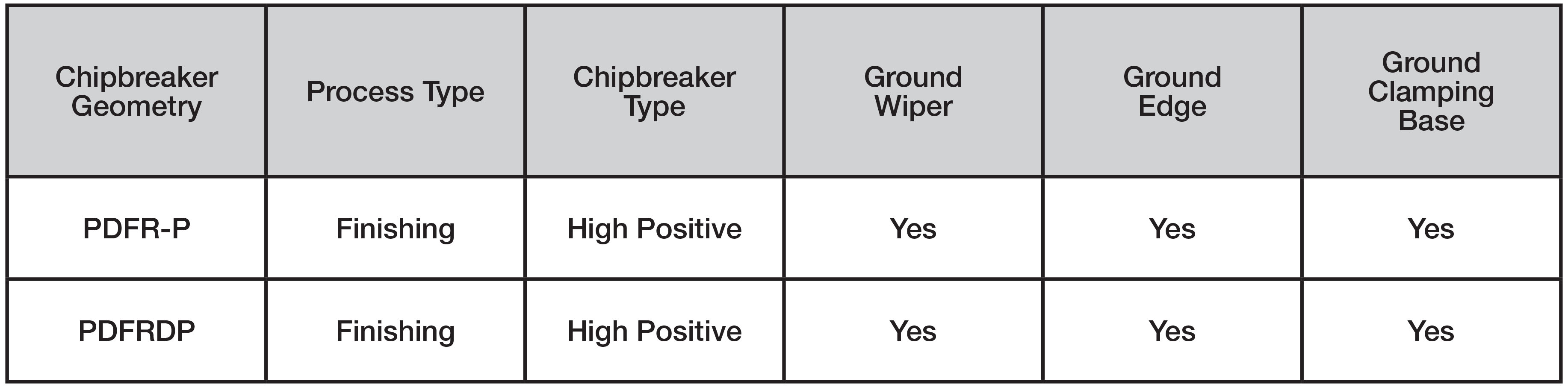

| Remarks | Super positive peripherally ground chipformer P - Polished rake DP- Polished rake and flank Used for machining aluminum (fz 0.07-0.25), titanium (fz 0.05-0.08) and magnesium (fz 0.05-0.10) Recommended for coarse pitch cutters | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0034
Name
Milling Indexable Inserts
FamilyName
HM90 APCR 100304PDFR-P/DP
BrandName
Iscar
