| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | IC28 |
| Application | | Facing | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |

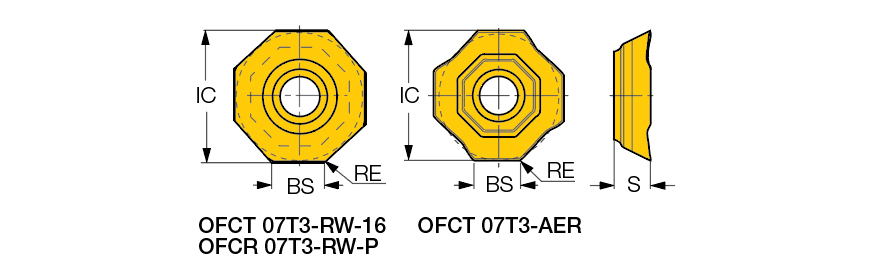

| Corner Radius (RE) | 0.6 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 2.5 mm | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 18.45 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Insert Thickness (S) | 4.58 mm | Number of Cutting Edges | 4 |
| Wiper Edge Length (BS) | 6.8 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 135 Degrees | Body Material | Carbide |
| Coating | Uncoated | Unit | M |
Product Features
| Family Description | HELIOCTO, Octagonal milling inserts with four wiper cutting edges. Used for finishing operations requiring very good surface quality. | FamilyName | OFCR/OFCT-RW/AER (wiper) |
| Remarks | Maximum depth of cut when using the wiper insert is 2.5 mm. It is recommended to use wiper insert in ap=0.5-1.0 mm in order to achieve the best results. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0139
Name
Milling Indexable Inserts
FamilyName
OFCR/OFCT-RW/AER (wiper)
BrandName
Iscar
