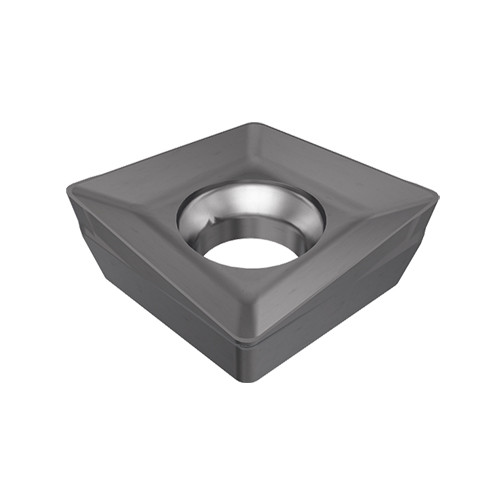

XOMT 060204-HQ IC908
HELIQUAD square inserts for milling, drilling and boring, with 2 right- and 2 left-hand cutting edges for general use.
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| Application | | Bottom Shouldering | Chamfering & Bottom Deburring | Counter Boring | Countersinking | Drill Mill | Rampdown | Shouldering | Side Slotting | Slanted Shoulder & Chamfer | Slotting | T Slotting | | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 6.16 mm | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 0.4 mm | Minimum Feed per Tooth (fz(min)) | 0.07 mm/tooth |
| Insert Thickness (S) | 2.56 mm | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Unit | M |
Product Features
| Family Description | HELIQUAD square inserts for milling, drilling and boring, with 2 right- and 2 left-hand cutting edges for general use. | FamilyName | XOMT-HQ |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0022
Name
Milling Indexable Inserts
FamilyName
XOMT-HQ
BrandName
Iscar
