OECR 060405AER-P IC928

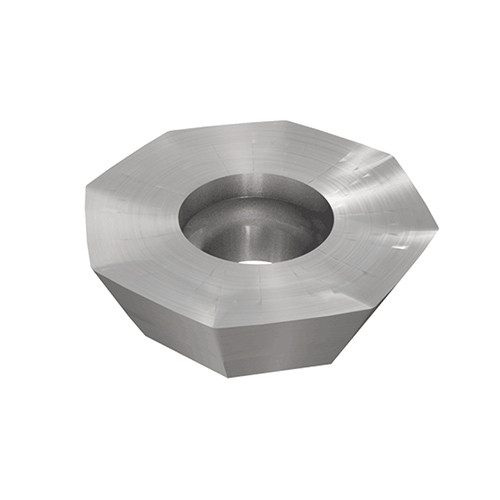

HELIOCTO, Octagonal milling inserts with positive rake (P - polished) and sharp cutting edges. Recommended for machining high silicon aluminum, titanium and magnesium.
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Application | | Facing | Slanted Shoulder & Chamfer | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.5 mm | Tool Type | Mill AL, HTA Geometric Inserts |
| Depth of Cut Maximum (APMX) | 3.7 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Insert Thickness (S) | 4.9 mm | Number of Cutting Edges | 8 |
| Insert Included Angle (EPSR) | 135 Degrees | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC928 | Unit | M |
Product Features
| Family Description | HELIOCTO, Octagonal milling inserts with positive rake (P - polished) and sharp cutting edges. Recommended for machining high silicon aluminum, titanium and magnesium. | FamilyName | OECR |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0081
Name
Milling Indexable Inserts
FamilyName
OECR
BrandName
Iscar
