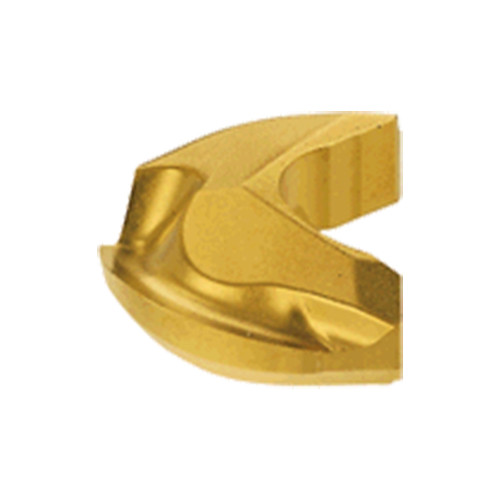

CRF D1.00-QF IC908
.5-1.0″ ball nose precision profiling inserts. Two effective flutes, used for shallow finishing.
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Application | | Profiling | | Tool Type | Single sided Inserts |

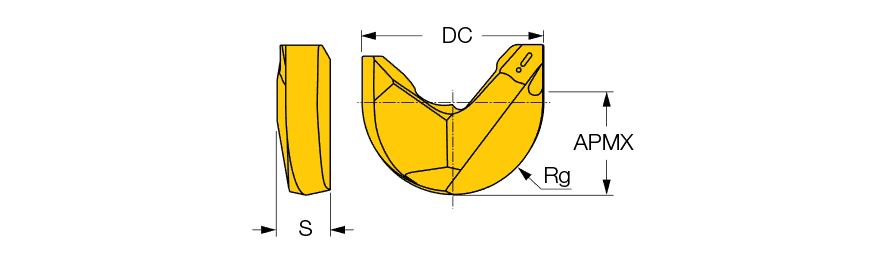

| Depth of Cut Maximum (APMX) | 0.54″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.236″ | Body Material | Carbide |
| Coating | TiAlN | Unit | I |
| Grade | IC908 |
Product Features
| Family Description | .5-1.0″ ball nose precision profiling inserts. Two effective flutes, used for shallow finishing. | FamilyName | CR/CRF-D.50-1.00 |
| Remarks | Rg = Generated radius on workpiece. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0492
Name
Milling Indexable Inserts
FamilyName
CR/CRF-D.50-1.00
BrandName
Iscar
