| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | Shouldering | Slotting | | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 5 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Insert Thickness (S) | 3.97 mm | Number of Cutting Edges | 8 |
| Coating | TiCN | Measurement Type | Metric |
| Grade | IC328 | Body Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth | Unit | M |
Product Features

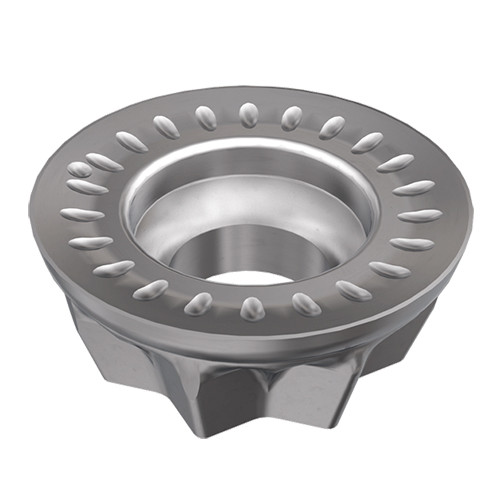

| Family Description | Round milling inserts with chipformers. Star shaped bottom for indexing and preventing insert rotation. | FamilyName | RXMT 10 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0033
Name
Milling Indexable Inserts
FamilyName
RXMT 10
BrandName
Iscar
