| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Cutting Direction (HAND) | Right Hand |
| Application | | Profiling | | Cutting Edge Material | Carbide |

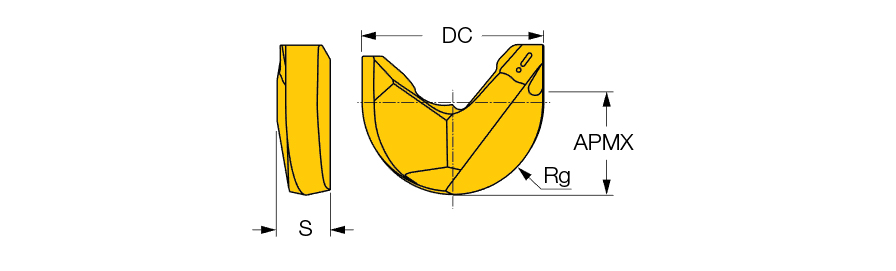

| Corner Radius (RE) | 10 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 11 mm | Number of Cutting Edges | 2 |
| Insert Width (W1) | 20 mm | Measurement Type | Metric |
| Insert Thickness (S) | 5.5 mm | Body Material | Carbide |
| Coating | TiCN | Unit | M |
| Grade | IC328 |
Product Features

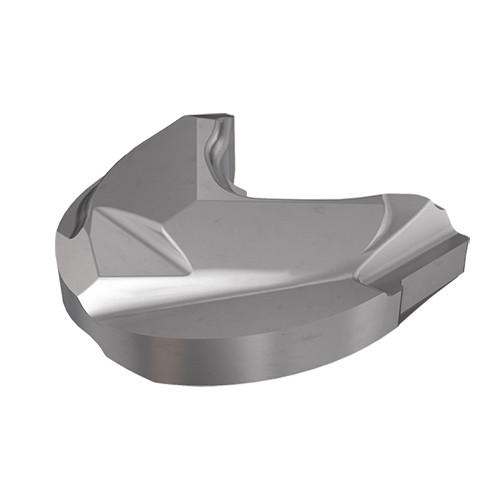

| Family Description | 12-20 mm ball nose precision profiling inserts. | FamilyName | CR/CRF-D12-25 |
| Remarks | CR inserts for roughing operations. CRF inserts for finishing operations. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0135
Name
Milling Indexable Inserts
FamilyName
CR/CRF-D12-25
BrandName
Iscar
