| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Application | | Facing | Slanted Shoulder & Chamfer | | Cutting Direction (HAND) | Right Hand |

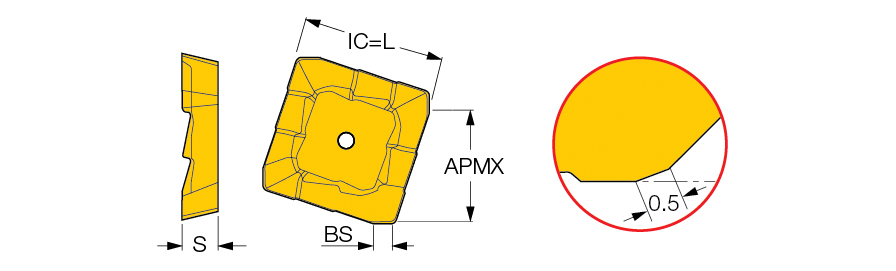

| Insert Length (INSL) | 12.7 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 9.5 mm | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 12.7 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Insert Thickness (S) | 3.18 mm | Number of Cutting Edges | 4 |
| Wiper Edge Length (BS) | 1.6 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
| Coating | TiCN | Unit | M |
| Grade | IC328 |
Product Features
| Family Description | Square positive inserts with chip splitting serrated cutting edges. Improves stability and enables milling at high depth of cut. | FamilyName | SPKR EDTR-HS |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0069
Name
Milling Indexable Inserts
FamilyName
SPKR EDTR-HS
BrandName
Iscar
