| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| Application | | Bottom Shouldering | Counter Boring | Countersinking | Drill Mill | Facing | Plunging & Recessing | Rampdown | Shouldering | Side Slotting | Slanted Shoulder & Chamfer | Slotting | T Slotting | | Cutting Direction (HAND) | Left Hand |
| Insert Length (INSL) | 15.7 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 12 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Insert Width (W1) | 9.57 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 5.64 mm | Cutting Edge Effective Length (LE) | 13.8 mm |
| Wiper Edge Length (BS) | 1.6 mm | Measurement Type | Metric |
| Coating | TiCN | Body Material | Carbide |
| Grade | IC328 | Unit | M |
Product Features

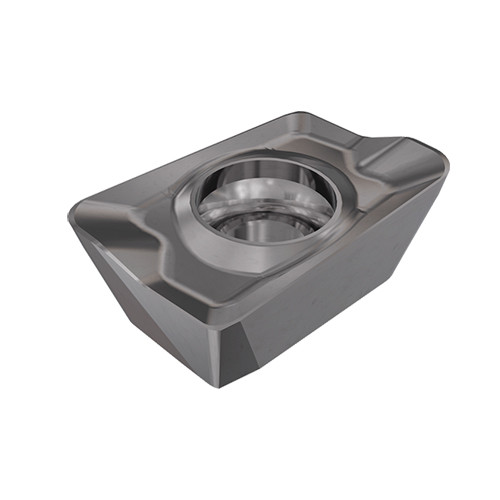

| Family Description | General-use inserts | FamilyName | ADKT/CT 1505 |
| Remarks | For inserts with corner radii larger than 2.0mm, the cutter body and seats should be modified Inserts with corner radii larger than 0.8mm should be used on ADK & SM tools only on the face of the cutter | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0078
Name
Milling Indexable Inserts
FamilyName
ADKT/CT 1505
BrandName
Iscar
Harmonized code
8209000030
