| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | IC28 |
| Application | | Chamfering & Bottom Deburring | Counter Boring | Countersinking | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |

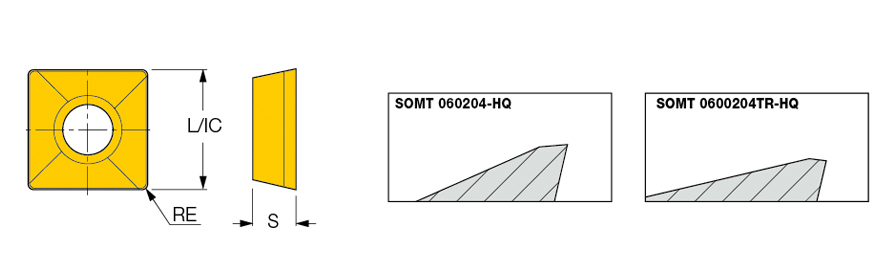

| Insert Length (INSL) | 6.16 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.4 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 4 mm | Minimum Feed per Tooth (fz(min)) | 0.07 mm/tooth |
| Inscribed Circle Diameter (IC) | 6.16 mm | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 2.56 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
| Coating | Uncoated | Unit | M |
Product Features

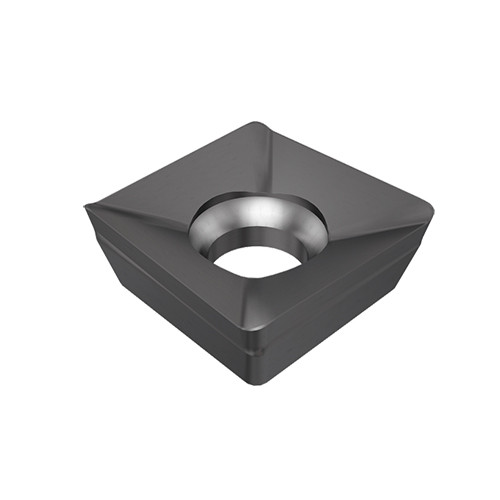

| Family Description | HELIQUAD square milling inserts for general use. | FamilyName | SOMT-HQ |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0016
Name
Milling Indexable Inserts
FamilyName
SOMT-HQ
BrandName
Iscar
