APKT 160424R-HM IC520M
Milling inserts with a 16 mm cutting edge length and positive rake angle for general use.
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Cutting Direction (HAND) | Right Hand |
| Application | | Countersinking | Facing | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Cutting Edge Material | Carbide |

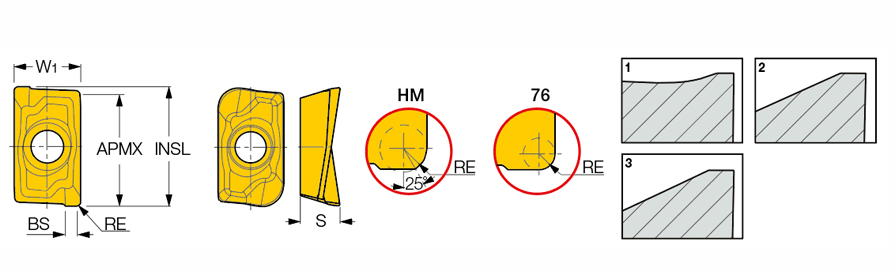

| Insert Length (INSL) | 16.7 mm | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 2.53 mm | Figure | 2 |
| Depth of Cut Maximum (APMX) | 14 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Insert Width (W1) | 9.45 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 5.3 mm | Cutting Edge Effective Length (LE) | 15.2 mm |
| Coating | TiCN | Measurement Type | Metric |
| Grade | IC520M | Body Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth | Unit | M |
Product Features
| Family Description | Milling inserts with a 16 mm cutting edge length and positive rake angle for general use. | FamilyName | APKT 1604 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0083
Name
Milling Indexable Inserts
FamilyName
APKT 1604
BrandName
Iscar
