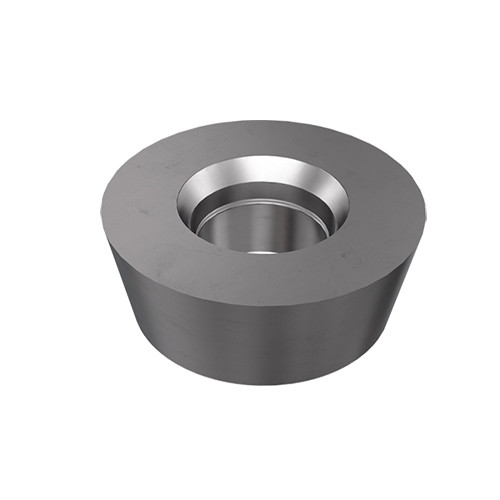

RPMW 120400 IC20
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Application | | Facing | Shouldering | Slotting | | Tool Type | Single sided Inserts |

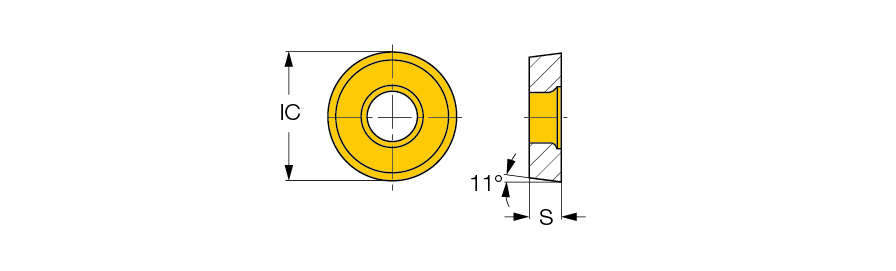

| Inscribed Circle Diameter (IC) | 12.7 mm | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 4.76 mm | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC20 | Unit | M |
Product Features
| Family Description | Round milling inserts with a flat rake, used for copying and rough milling | FamilyName | RPMW |
| Remarks | For dimensions and tolerances click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0073
Name
Milling Indexable Inserts
FamilyName
RPMW
BrandName
Iscar
