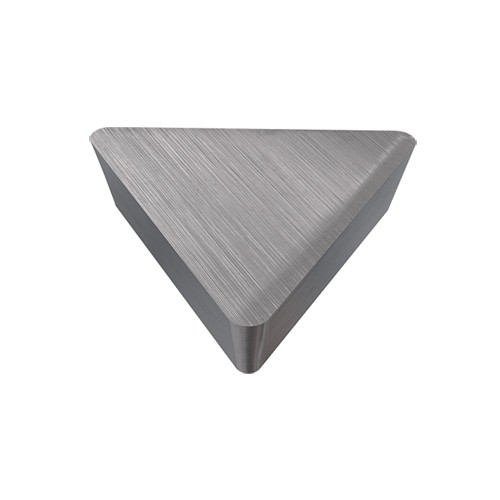

TPUN 160304 IC428
Triangular positive inserts with a flat rake, used for short chipping materials
| Applicable Material | | Steel | Cast Iron | Hard Materials | | Cutting Edge Material | Carbide |
| Application | | Facing | Shouldering | Slotting | | Tool Type | Single sided Inserts |

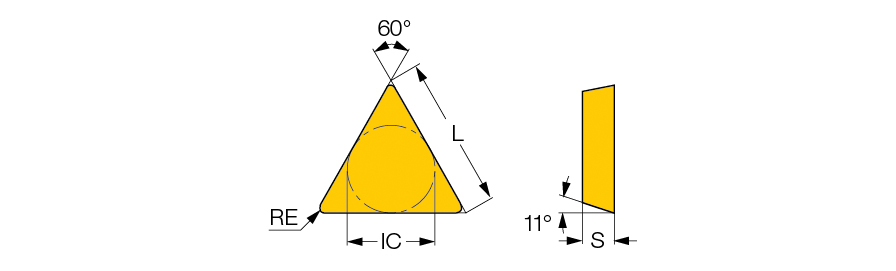

| Insert Length (INSL) | 16 mm | Number of Cutting Edges | 3 |
| Corner Radius (RE) | 0.4 mm | Measurement Type | Metric |
| Insert Thickness (S) | 3.18 mm | Body Material | Carbide |
| Coating | TiC+Al2O3 | Unit | M |
| Grade | IC428 |
Product Features
| Family Description | Triangular positive inserts with a flat rake, used for short chipping materials | FamilyName | TPUN |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0061
Name
Milling Indexable Inserts
FamilyName
TPUN
BrandName
Iscar
