HM390 TDKT 1505PDR IC716
Triangular inserts with 3 helical cutting edges for 90° shoulder accuracy. For general use applications.
| Applicable Material | | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 16.71 mm | Tool Type | Single sided Inserts |

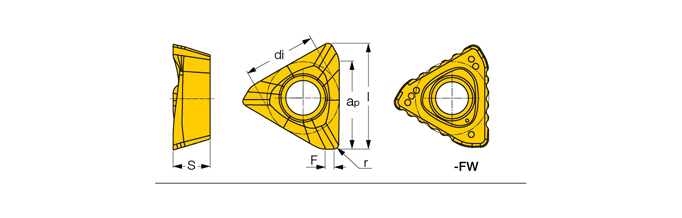

| Corner Radius (RE) | 0.8 mm | Figure | 3 |
| Depth of Cut Maximum (APMX) | 13 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Inscribed Circle Diameter (IC) | 11.4 mm | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 5.85 mm | Cutting Edge Effective Length (LE) | 13 mm |
| Wiper Edge Length (BS) | 1.4 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 60 Degrees | Body Material | Carbide |
| Coating | TiB2 | Unit | M |
| Grade | IC716 |
Product Features
| Family Description | Triangular inserts with 3 helical cutting edges for 90° shoulder accuracy. For general use applications. | FamilyName | HM390 TDKT/CT 1505 |

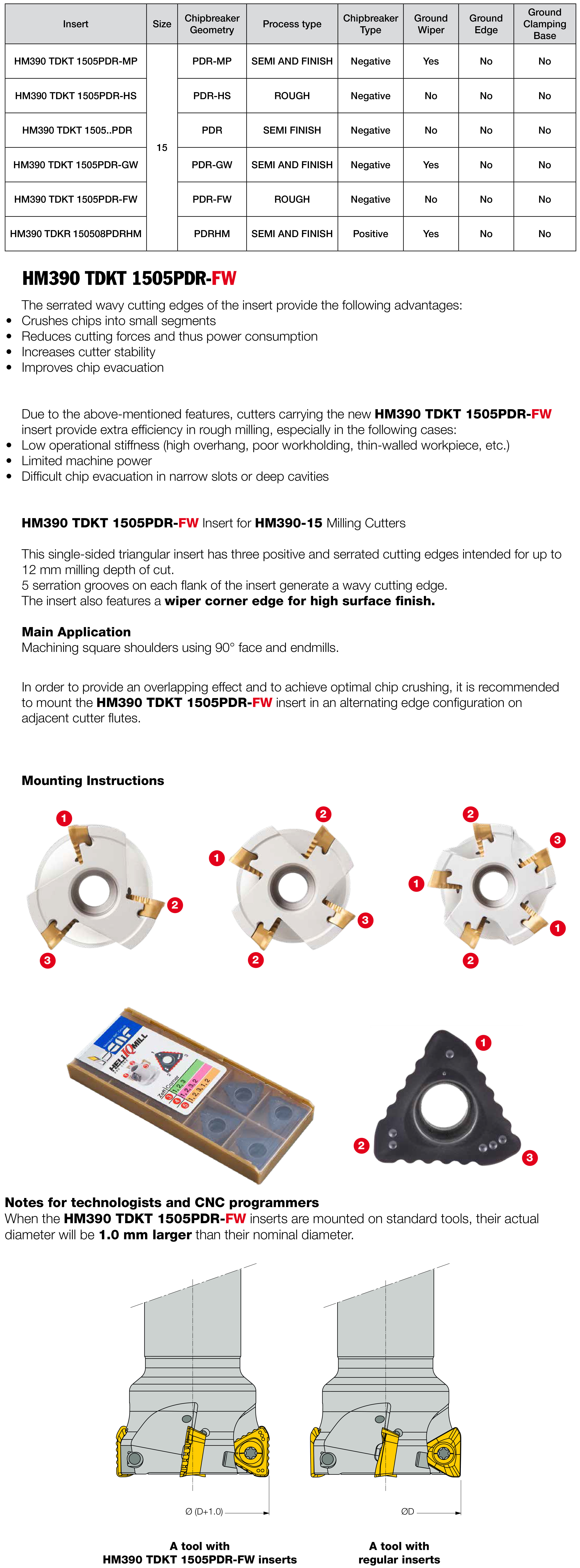

| Remarks | For HM390 TDKT 1505PDR-FW insert clamping order instructions, watch the attached video film. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0087
Name
Milling Indexable Inserts
FamilyName
HM390 TDKT/CT 1505
BrandName
Iscar
