| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Application | | Facing | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |

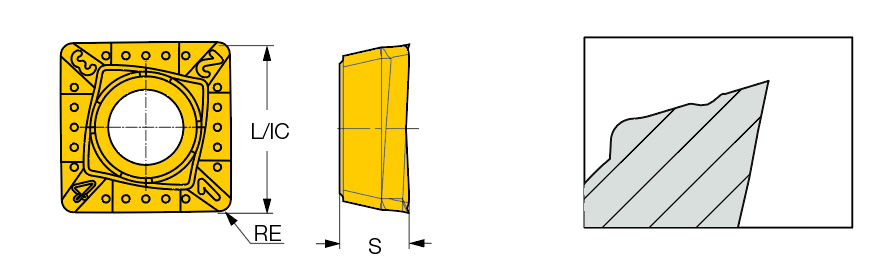

| Insert Length (INSL) | 10.2 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 8 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Insert Thickness (S) | 4.23 mm | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Metric |
| Coating | AlTiN+TiAlSiN+TiSiN | Body Material | Carbide |
| Grade | IC840 | Unit | M |
Product Features

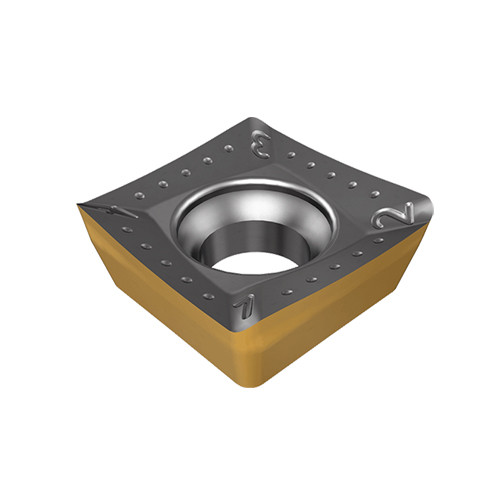

| Family Description | High positive inserts for machining stainless steel and high temperature alloys | FamilyName | SPMT-HP |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0046
Name
Milling Indexable Inserts
FamilyName
SPMT-HP
BrandName
Iscar
