FFX4 XNMU 080620HP IC882

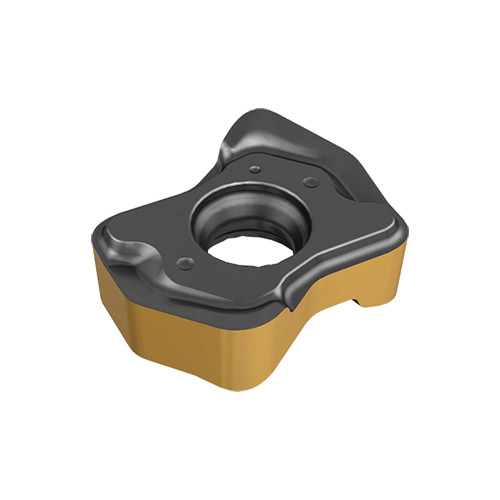

Double-sided "bone shaped" inserts with 4 cutting edges, for fast feed milling. Used for small size pockets, profiling and face milling.
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.8 mm/tooth |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Cutting Direction (HAND) | Right Hand |

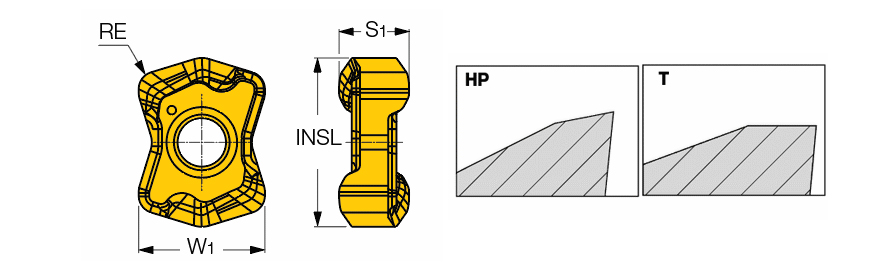

| Insert Length (INSL) | 17.9 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 2 mm | Minimum Feed per Tooth (fz(min)) | 0.2 mm/tooth |
| Depth of Cut Maximum (APMX) | 2 mm | Number of Cutting Edges | 4 |
| Insert Width (W1) | 15.6 mm | Measurement Type | Metric |
| Coating | AlTiN+TiAlSiN+TiSiN | Body Material | Carbide |
| Grade | IC882 | Unit | M |
Product Features
| Family Description | Double-sided "bone shaped" inserts with 4 cutting edges, for fast feed milling. Used for small size pockets, profiling and face milling. | FamilyName | FFX4 XNMU-08 |
| Remarks | For side plunging, the initial cutting feed is 0.1 mm/t T-for steel, ferritic and martensitic stainless steel, cast iron and hardened steel HP-for austenitic stainless steel and high temperature alloys | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0190
Name
Milling Indexable Inserts
FamilyName
FFX4 XNMU-08
BrandName
Iscar
