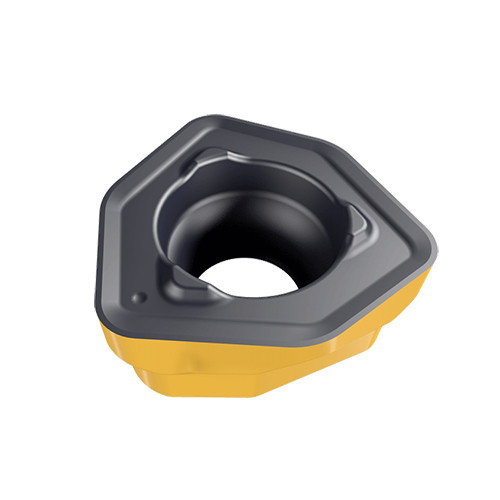

FFT3 WXMT 030206T IC830
Single-sided small trigon inserts for Fast Feed milling.
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | IC830 |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Maximum Feed per Tooth (fz(max)) | 0.8 mm/tooth |
| Insert Length (INSL) | 4.5 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.6 mm | Minimum Feed per Tooth (fz(min)) | 0.2 mm/tooth |
| Depth of Cut Maximum (APMX) | 0.6 mm | Number of Cutting Edges | 3 |
| Inscribed Circle Diameter (IC) | 4.2 mm | Measurement Type | Metric |
| Insert Thickness (S) | 2.2 mm | Body Material | Carbide |
| Coating | AlTiN+TiN | Unit | M |
Product Features
| Family Description | Single-sided small trigon inserts for Fast Feed milling. | FamilyName | FFT3 WXMT 03 |
| Remarks | For side plunging, the initial cutting feed is 0.08 mm/t | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0016
Name
Milling Indexable Inserts
FamilyName
FFT3 WXMT 03
BrandName
Iscar
