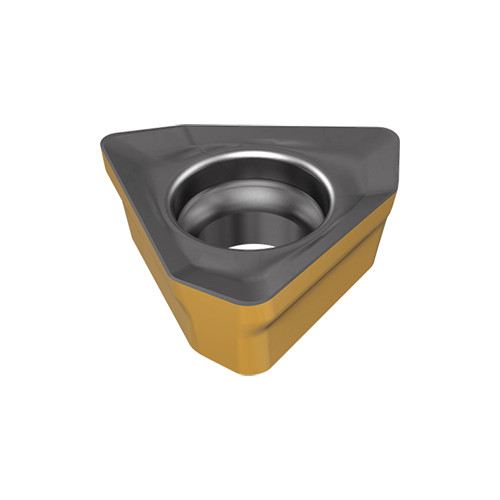

HM390 TPKT 0502PDR IC830
Triangular inserts with 3 helical cutting edges for 90° shoulder accuracy. For general use applications.
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | IC830 |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| Insert Length (INSL) | 5.26 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.4 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 3.5 mm | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Inscribed Circle Diameter (IC) | 3.94 mm | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 2.1 mm | Measurement Type | Metric |
| Wiper Edge Length (BS) | 1 mm | Body Material | Carbide |
| Coating | AlTiN+TiN | Unit | M |
Product Features
| Family Description | Triangular inserts with 3 helical cutting edges for 90° shoulder accuracy. For general use applications. | FamilyName | HM390 TPKT/CT 0502 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0016
Name
Milling Indexable Inserts
FamilyName
HM390 TPKT/CT 0502
BrandName
Iscar
