| Applicable Material | | Steel | Cast Iron | | Grade | IC810 |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.16 mm/tooth |

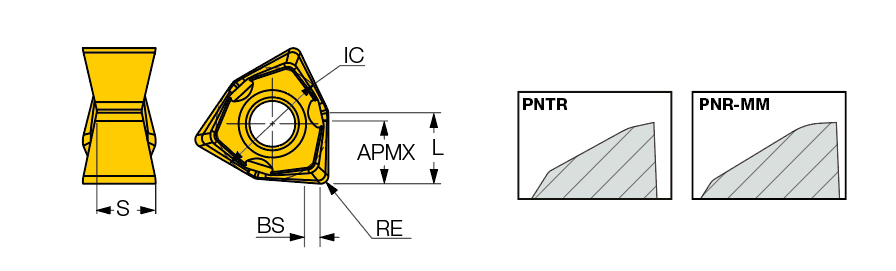

| Insert Length (INSL) | 4.2 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.4 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Depth of Cut Maximum (APMX) | 4 mm | Number of Cutting Edges | 6 |
| Inscribed Circle Diameter (IC) | 6.7 mm | Cutting Edge Effective Length (LE) | 4.2 mm |
| Insert Thickness (S) | 3.5 mm | Measurement Type | Metric |
| Wiper Edge Length (BS) | 0.8 mm | Body Material | Carbide |
| Coating | AlTiCrN+TiN | Unit | M |
Product Features

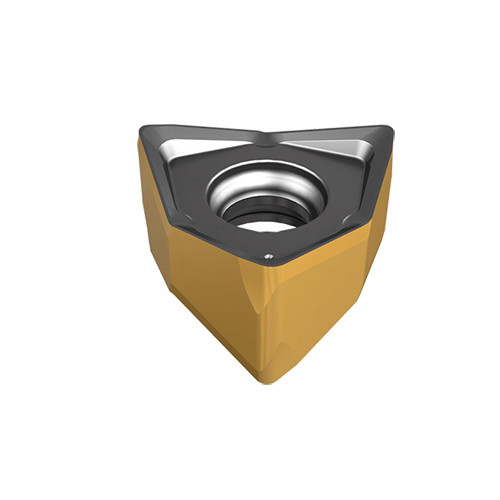

| Family Description | Trigonal inserts with 6 helical cutting edges for 90° shoulder milling | FamilyName | H690 WNMU 0403 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0028
Name
Milling Indexable Inserts
FamilyName
H690 WNMU 0403
BrandName
Iscar
