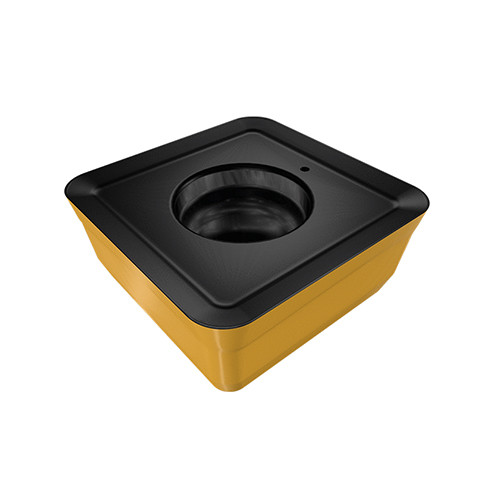

FFQ4 SOMT 090412T IC810
Single-sided square inserts with 4 cutting edges for fast feed milling.
| Applicable Material | | Steel | Cast Iron | | Maximum Feed per Tooth (fz(max)) | 1.5 mm/tooth |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Cutting Direction (HAND) | Neutral |

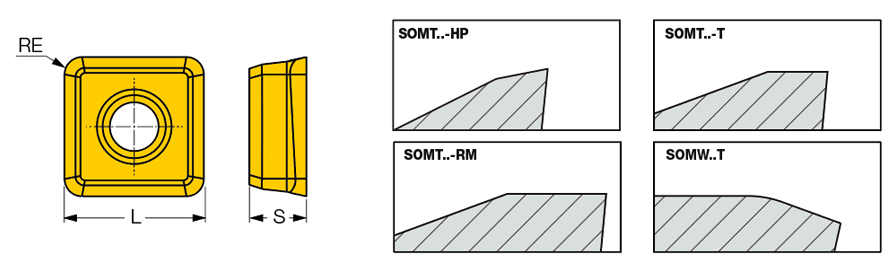

| Insert Length (INSL) | 8.5 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 1.2 mm | Minimum Feed per Tooth (fz(min)) | 0.4 mm/tooth |
| Depth of Cut Maximum (APMX) | 1 mm | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 3.9 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
| Coating | AlTiCrN+TiN | Unit | M |
| Grade | IC810 |
Product Features
| Family Description | Single-sided square inserts with 4 cutting edges for fast feed milling. | FamilyName | FFQ4 SOMT/W 0904 |
| Remarks | For side plunging, the initial cutting feed is 0.1 mm/t T type for steel, ferritic and martensitic stainless steel and cast iron RM-.. reinforced radius type for machining near straight shoulder walls HP type for austenitic stainless steel and high temperature alloys SOMW- flat insert for hard material (up to 60 HRC) and uneven surface For cutting conditions click on More info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0037
Name
Milling Indexable Inserts
FamilyName
FFQ4 SOMT/W 0904
BrandName
Iscar
