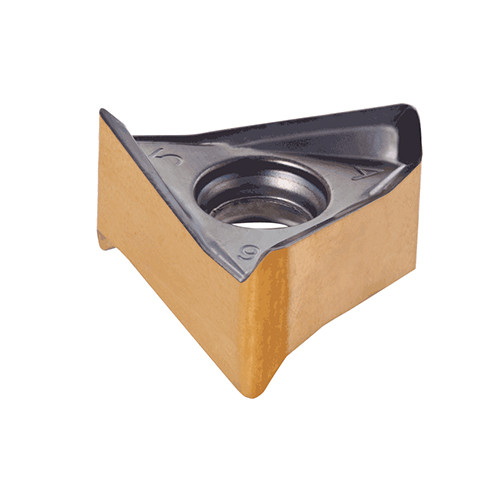

H690 TNKX 100508PNTR IC808
Triangular inserts with 6 helical cutting edges for 90° general use applications.
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| Application | | Facing | Shouldering | Slotting | | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 8.6 mm | Tool Type | Double sided Inserts |
| Corner Radius (RE) | 0.8 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Depth of Cut Maximum (APMX) | 8 mm | Number of Cutting Edges | 6 |
| Insert Thickness (S) | 4.7 mm | Cutting Edge Effective Length (LE) | 8 mm |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Metric |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Grade | IC808 | Unit | M |
Product Features
| Family Description | Triangular inserts with 6 helical cutting edges for 90° general use applications. | FamilyName | H690 TNKX/TNCX 1005 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0030
Name
Milling Indexable Inserts
FamilyName
H690 TNKX/TNCX 1005
BrandName
Iscar
