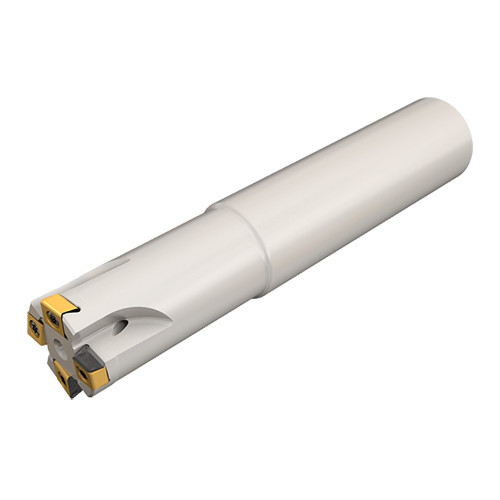

HTP D020-3-L150-C20-LN06
TANGPLUNGE, Side plungers carrying tangentially clamped inserts with 4 cutting edges. 5 mm side plunging capacity and 2.5 mm maximum face milling DOC. Provide excellent side wall surface finish and a flat bottom.
| Application | | Shouldering | Side Plunging | | Coolant Supply Property (CSP) | Coolant Thru |

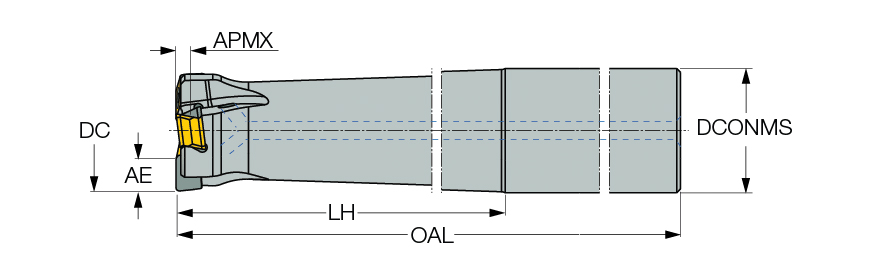

| Cutting Diameter (DC) | 20 mm | Head Length (LH) | 40 mm |
| Cutting Item Count (CICT) | 3 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 2.5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Tool Type | Plungers cutters |
| Face Effective Cutting Edge Count (ZEFF) | 3 | Body Material | Steel |
| Usable Length (LU) | 40 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Overall Length (OAL) | 150 mm | Unit | M |
| Shank Type | Round |
Product Features
| Family Description | TANGPLUNGE, Side plungers carrying tangentially clamped inserts with 4 cutting edges. 5 mm side plunging capacity and 2.5 mm maximum face milling DOC. Provide excellent side wall surface finish and a flat bottom. | FamilyName | HTP-LN06 |
| Remarks | For adaptation, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.3910
Name
Plunge Mills
FamilyName
HTP-LN06
BrandName
Iscar
