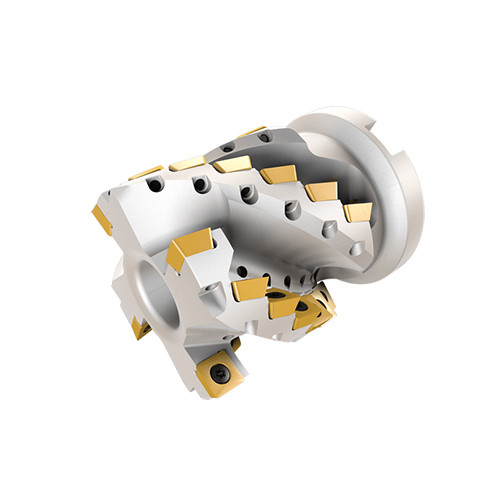

SDK D050-48-04-27-10-HP
Extended flute shell mills carrying SDHW/T 100408... inserts.
| Application | | Shouldering | Slotting | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 24 | Arbor Style | A |

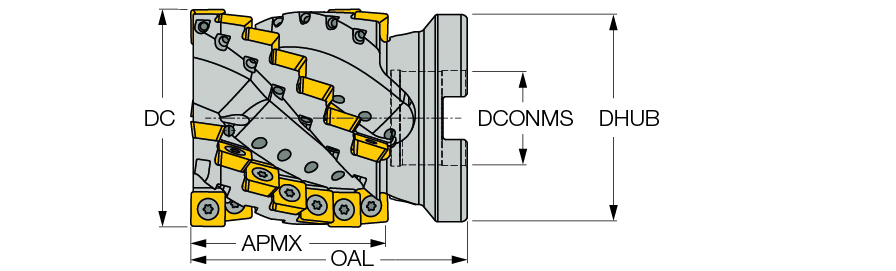

| Depth of Cut Maximum (APMX) | 48 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 50 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Body Material | Steel |
| Flute Count (NOF) | 4 | Tool Type | 90° Extended flute shell mill |
| Overall Length (OAL) | 80 mm | Hub Diameter (DHUB) | 49 mm |
| Master Insert Identification (MIID) | SDHT 100408-PDEN | Unit | M |
Product Features
| Family Description | Extended flute shell mills carrying SDHW/T 100408... inserts. | FamilyName | SDK-10-C/HP |
| Remarks | For adaptation, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.7830
Name
Shell Mills
FamilyName
SDK-10-C/HP
BrandName
Iscar
