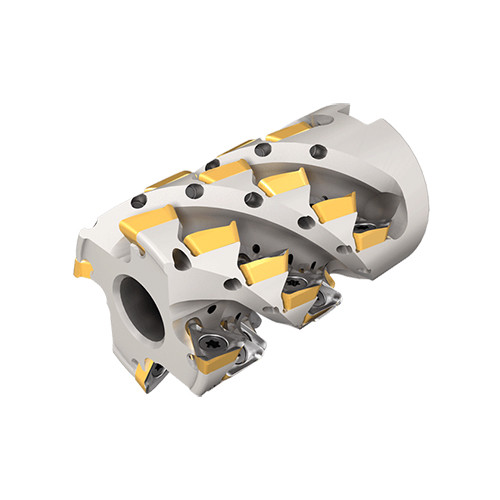

HM390 SM D040-49-4-16-10
Extended flute shell mills carrying HM390 TPKT 1003 triangular inserts with 3 helical cutting edges

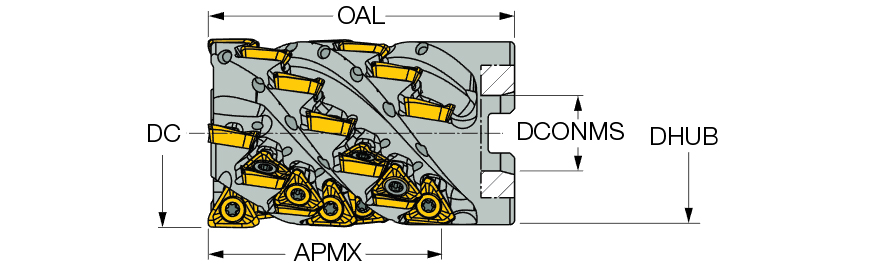

| Application | | Shouldering | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 28 | Arbor Style | A |
| Depth of Cut Maximum (APMX) | 49 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 40 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 38.8 mm | Body Material | Steel |
| Flute Count (NOF) | 4 | Tool Type | 90° Extended flute shell mill |
| Overall Length (OAL) | 65 mm | Unit | M |
| Master Insert Identification (MIID) | HM390 TPKT 1003 |
Product Features
| Family Description | Extended flute shell mills carrying HM390 TPKT 1003 triangular inserts with 3 helical cutting edges | FamilyName | HM390 SM-10 |
| Remarks | For inserts with a corner radius larger than 1.6mm, tools must be modified by rounding the corners of the tool body according to the formula: R body'scorner = R insert + 0.5 mm. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.4630
Name
Shell Mills
FamilyName
HM390 SM-10
BrandName
Iscar
