T490 SM-D3.0-18-5-1.25-13

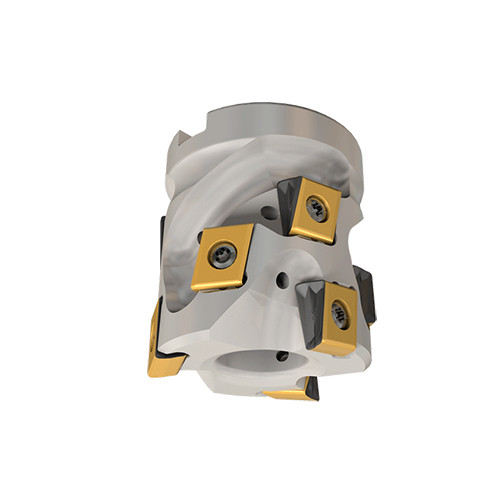

Extended flute shell mills carrying T490 LNMT/HT 1306... tangentially clamped inserts (HELITANG T490 Line).
| Application | | Shouldering | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 20 | Arbor Style | A |

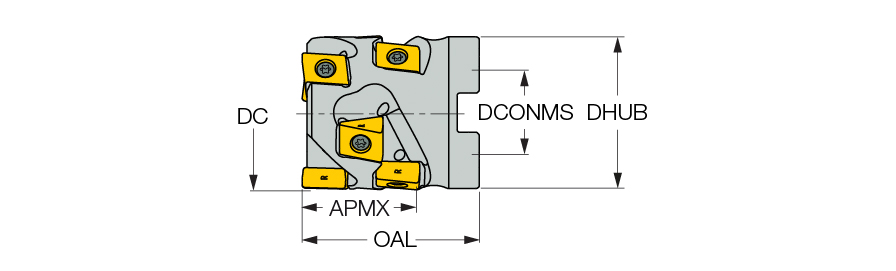

| Depth of Cut Maximum (APMX) | 1.87″ | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 3″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 2.795″ | Body Material | Steel |
| Flute Count (NOF) | 5 | Tool Type | 90° Extended flute shell mill |
| Overall Length (OAL) | 2.7″ | Unit | I |
| Master Insert Identification (MIID) | T490 LNMT 1306PNTR |
Product Features
| Family Description | Extended flute shell mills carrying T490 LNMT/HT 1306... tangentially clamped inserts (HELITANG T490 Line). | FamilyName | T490 SM-13 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
3.9926
Name
Shell Mills
FamilyName
T490 SM-13
BrandName
Iscar
