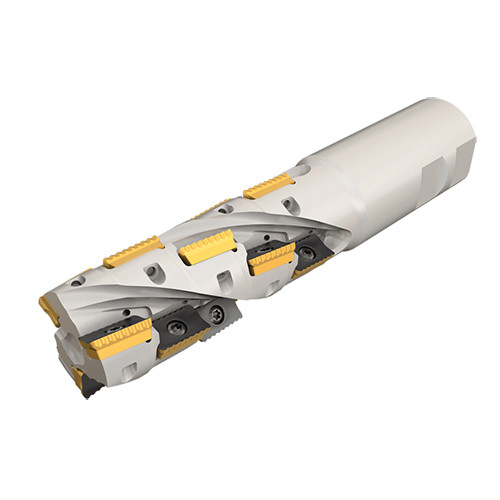

P290 ACK2.0-3-6.3-W200-18
Extended flute endmills carrying .472 and .708″ long edged inserts.
| Application | | Rampdown | Shouldering | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 27 | Cutting Direction (HAND) | Right Hand |

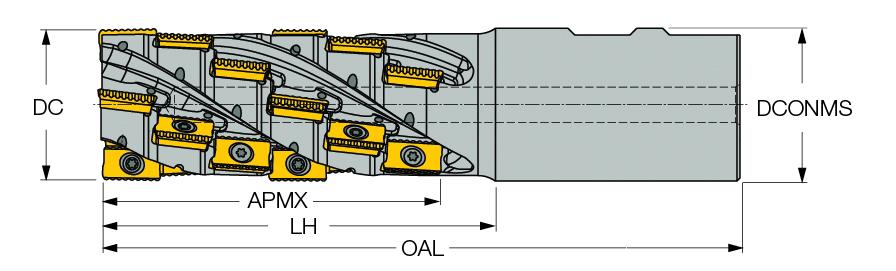

| Depth of Cut Maximum (APMX) | 6.3″ | Measurement Type | Inch |
| Cutting Diameter (DC) | 2″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 2″ | Tool Type | 90° Extended flute endmills |
| Flute Count (NOF) | 3 | Connection Code Machine Side (CCMS) | Weldon |
| Overall Length (OAL) | 10.63″ | Unit | I |
| Master Insert Identification (MIID) | P290 ACKT 1806PDR-FW |
Product Features
| Family Description | Extended flute endmills carrying .472 and .708″ long edged inserts. | FamilyName | P290 ACK |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
7.1099
Name
Shell Mills
FamilyName
P290 ACK
BrandName
Iscar
