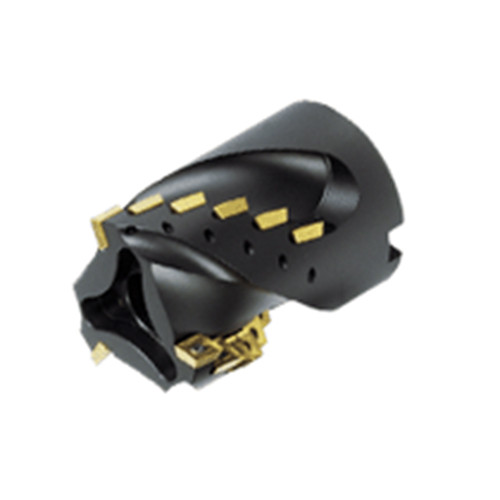

SDK D63-53-27-FT/A

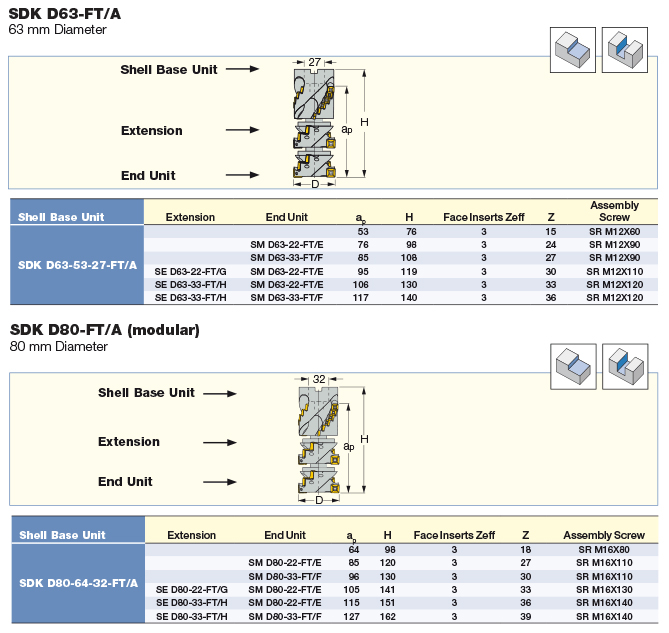

Basic units of modular extended flute shell mills carrying S/QDMT 1205... inserts. Can be used with many extension options.
| Application | | Shouldering | Slotting | | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 15 | Arbor Style | A |

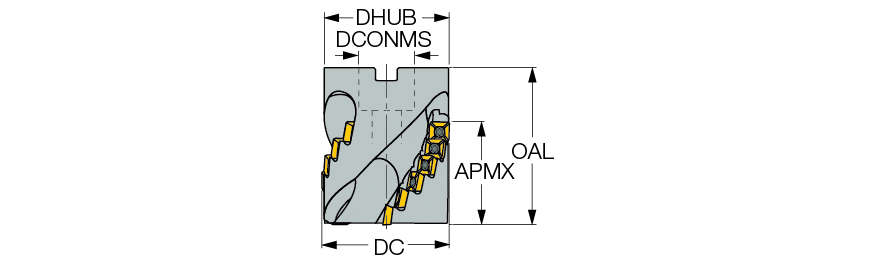

| Depth of Cut Maximum (APMX) | 53 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 63 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 60.9 mm | Body Material | Steel |
| Flute Count (NOF) | 3 | Tool Type | 90° Extended flute shell mill |
| Overall Length (OAL) | 76 mm | Unit | M |
| Master Insert Identification (MIID) | SDMT 1205 |
Product Features
| Family Description | Basic units of modular extended flute shell mills carrying S/QDMT 1205... inserts. Can be used with many extension options. | FamilyName | SDK Shell Mill-FT/A |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
1.1210
Name
Shell Mills
FamilyName
SDK Shell Mill-FT/A
BrandName
Iscar
