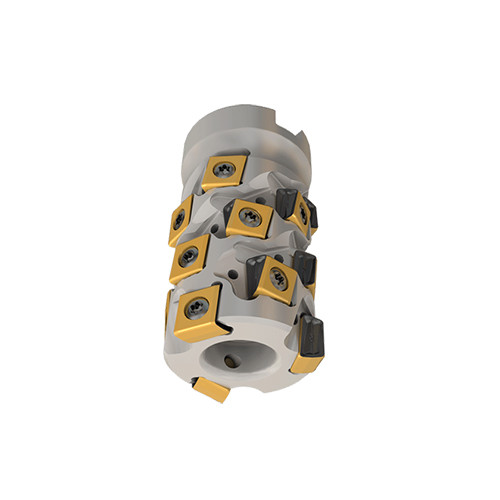

T490 SM-D50-59-4-22-11
Extended flute shell mills carrying T490 LN#T 11... tangentially clamped inserts.
| Application | | Shouldering | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 28 | Arbor Style | A |

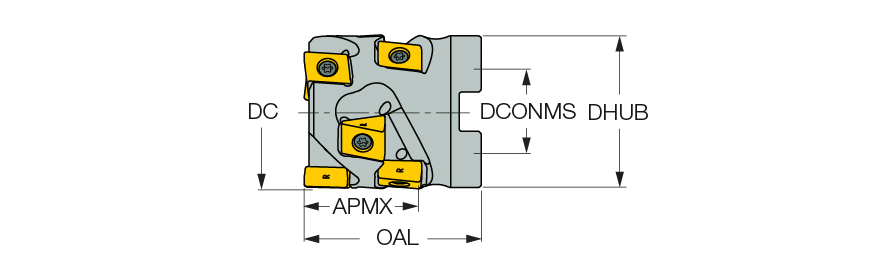

| Depth of Cut Maximum (APMX) | 59 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 50 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 48 mm | Body Material | Steel |
| Flute Count (NOF) | 4 | Tool Type | 90° Extended flute shell mill |
| Overall Length (OAL) | 80 mm | Unit | M |
| Master Insert Identification (MIID) | T490 LNHT 1106PNTR |
Product Features
| Family Description | Extended flute shell mills carrying T490 LN#T 11... tangentially clamped inserts. | FamilyName | T490 SM-11 |
| Remarks | Important: Maximum clamping torque 3.2 Nxm | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.9720
Name
Shell Mills
FamilyName
T490 SM-11
BrandName
Iscar
