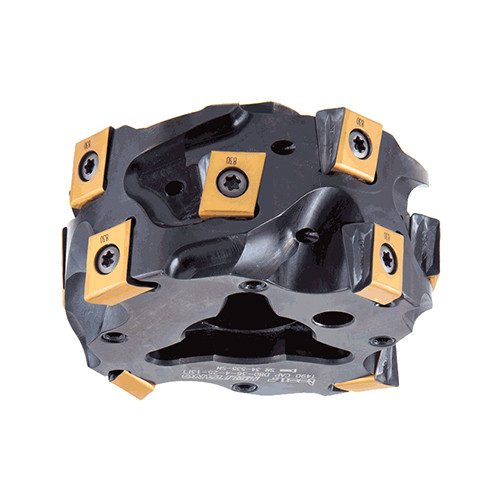

T490 CAP-D80-24-4-25-13FT

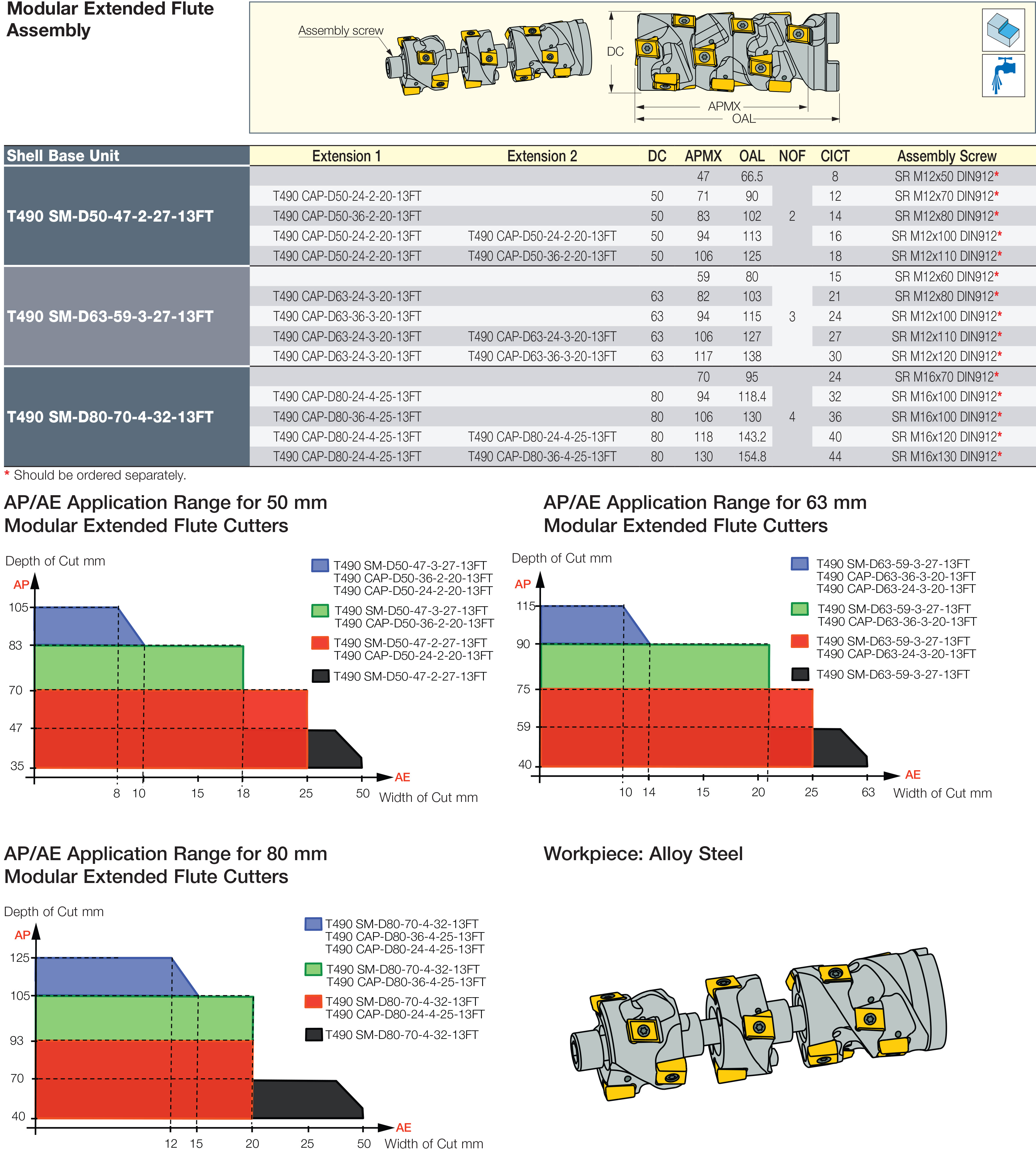

Extension units for modular extended flute shell mills.
| Application | | Shouldering | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 8 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 24 mm | Measurement Type | Metric |
| Cutting Diameter (DC) | 80 mm | Body Material | Steel |
| Flute Count (NOF) | 4 | Tool Type | 90° Extended flute shell mill |
| Overall Length (OAL) | 24 mm | Unit | M |
| Master Insert Identification (MIID) | T490 LNHT 1306..PNTR |
Product Features
| Family Description | Extension units for modular extended flute shell mills. | FamilyName | T490 CAP-13FT |
| Remarks | Assembly screw should be ordered separately | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.6760
Name
Shell Mills
FamilyName
T490 CAP-13FT
BrandName
Iscar
