T445 SMD2.5-.94-4-1.25-13

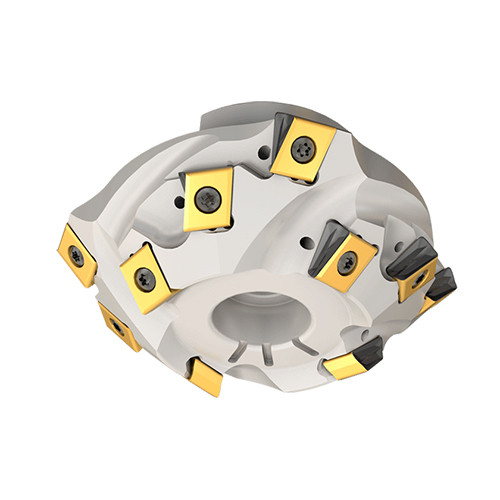

30°, 45° and 60° extended flute face mills, carrying T490 LNMT/LNHT 13... tangentially clamped inserts with 4 helical, .511″ long cutting edges.

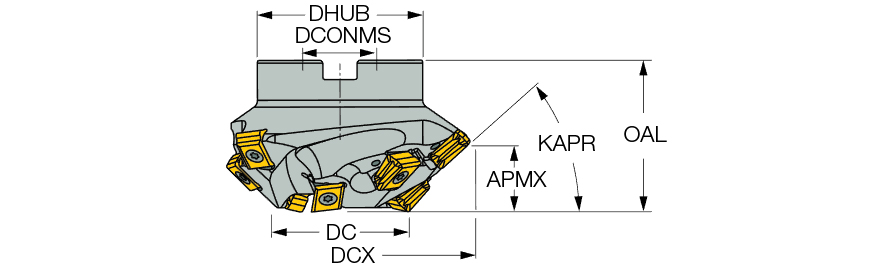

| Application | | Facing | Slanted Shoulder & Chamfer | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 12 | Arbor Style | A |
| Depth of Cut Maximum (APMX) | 0.94″ | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 2-1/2″ | Cutting Diameter Maximum (DCX) | 4.403″ |
| Connection Diameter Machine Side (DCONMS) | 2.56″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Body Material | Steel |
| Overall Length (OAL) | 2-1/4″ | Tool Type | 45° Facemills |
| Master Insert Identification (MIID) | T490 LNMT 1306PNTR | Unit | I |
Product Features
| Family Description | 30°, 45° and 60° extended flute face mills, carrying T490 LNMT/LNHT 13... tangentially clamped inserts with 4 helical, .511″ long cutting edges. | FamilyName | T430/T445/T460 SM |

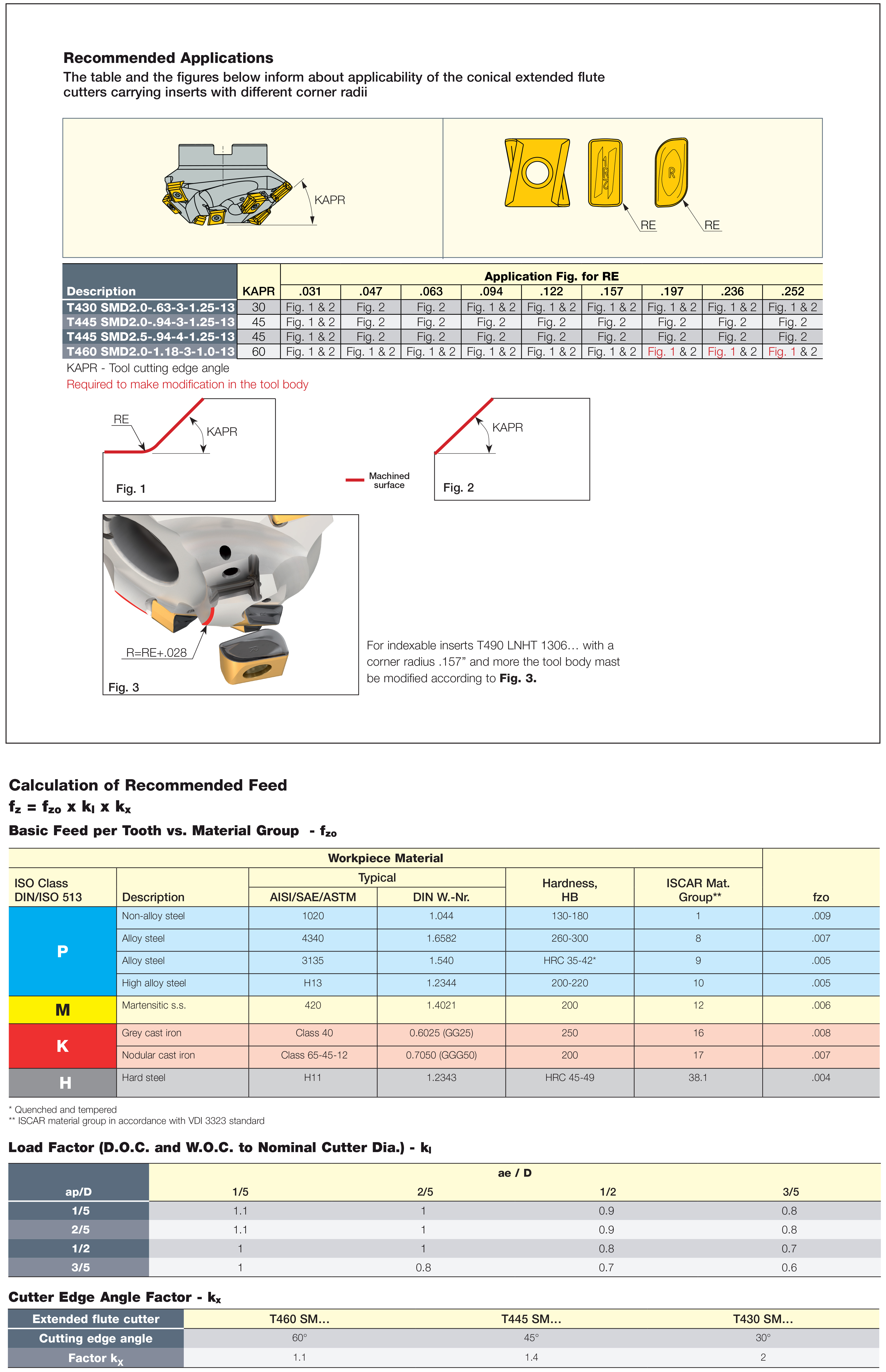

| Remarks | Note: RPM should be considered according to the recommended speed applied on the outer diameter obtained by the specific D.O.C. For calculating feed recommendations, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
4.2902
Name
Shell Mills
FamilyName
T430/T445/T460 SM
BrandName
Iscar
Related Documentation
