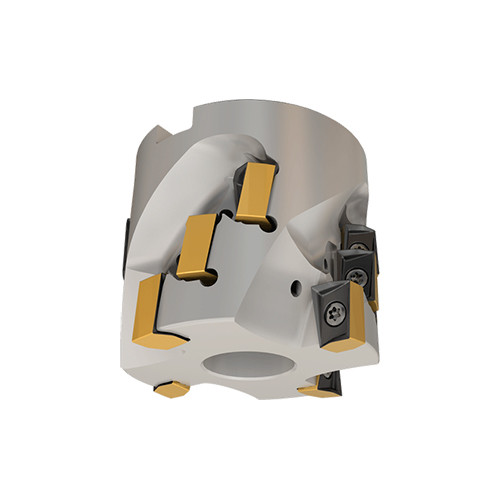

H490 SM D063-48-3-27-17C
Extended flute shell mills carrying H490 ANKX 17.. double-sided rectangular inserts with 4 helical cutting edges (HELIDO 490 LINE).
| Application | | Shouldering | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 9 | Arbor Style | A |
| Depth of Cut Maximum (APMX) | 46.5 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 63 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 59.4 mm | Body Material | Steel |
| Flute Count (NOF) | 3 | Tool Type | 90° Extended flute shell mill |
| Overall Length (OAL) | 70 mm | Unit | M |
| Master Insert Identification (MIID) | H490 ANKX 170604PNTR |
Product Features
| Family Description | Extended flute shell mills carrying H490 ANKX 17.. double-sided rectangular inserts with 4 helical cutting edges (HELIDO 490 LINE). | FamilyName | H490 SM-17 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
1.1750
Name
Shell Mills
FamilyName
H490 SM-17
BrandName
Iscar
