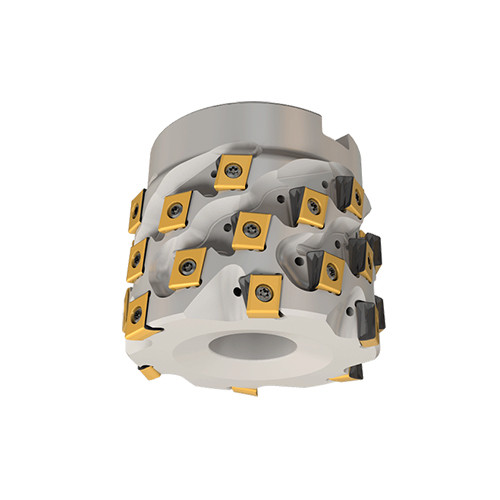

T490 SM-D50-36-3-25.4-13
Extended flute shell mills carrying T490 LNMT/HT 1306... tangentially clamped inserts (HELITANG T490 Line).

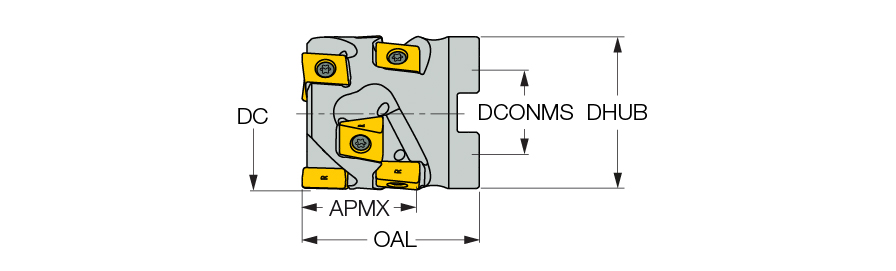

| Application | | Shouldering | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 9 | Arbor Style | A |
| Depth of Cut Maximum (APMX) | 36 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 50 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 48 mm | Body Material | Steel |
| Flute Count (NOF) | 3 | Tool Type | 90° Extended flute shell mill |
| Overall Length (OAL) | 60 mm | Unit | M |
| Master Insert Identification (MIID) | T490 LNMT 1306PNTR |
Product Features
| Family Description | Extended flute shell mills carrying T490 LNMT/HT 1306... tangentially clamped inserts (HELITANG T490 Line). | FamilyName | T490 SM-13 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.6140
Name
Shell Mills
FamilyName
T490 SM-13
BrandName
Iscar
