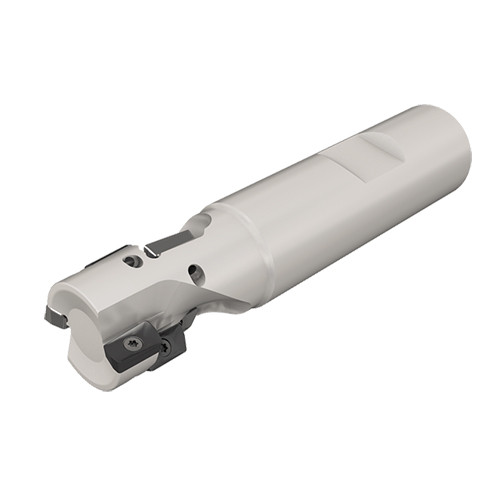

HP ANK D.75-.85-02-W.75-7
Extended flute endmills carrying HELIPLUS HP ANK-07... inserts.

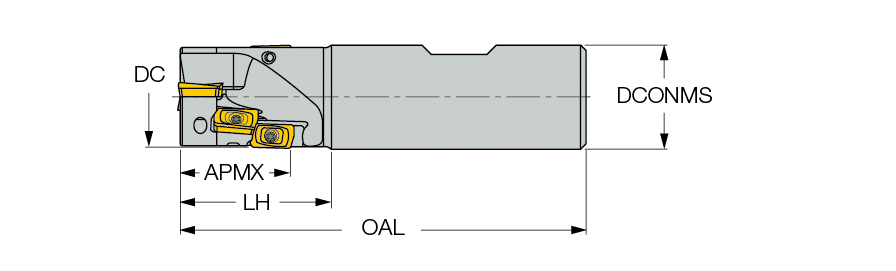

| Application | | Shouldering | Slotting | | Master Insert Identification (MIID) | HP ANCR 070204PNFR |
| Cutting Item Count (CICT) | 6 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.85″ | Measurement Type | Inch |
| Cutting Diameter (DC) | 3/4″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Tool Type | 90° Extended flute endmills |
| Flute Count (NOF) | 2 | Connection Code Machine Side (CCMS) | Weldon |
| Overall Length (OAL) | 3-1/2″ | Unit | I |
Product Features
| Family Description | Extended flute endmills carrying HELIPLUS HP ANK-07... inserts. | FamilyName | HP ANK-07 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.4784
Name
Shell Mills
FamilyName
HP ANK-07
BrandName
Iscar
