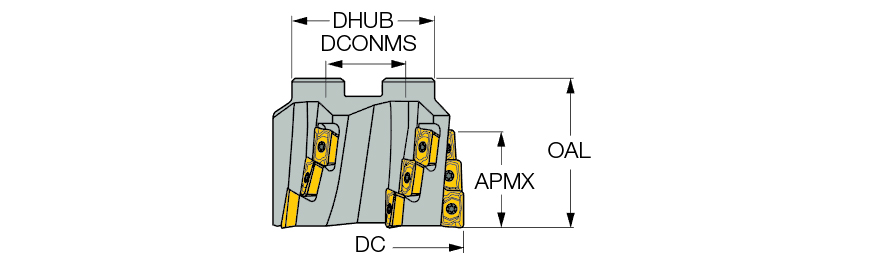

| Application | | Facing | Rampdown | Shouldering | Slotting | | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 6 | Arbor Style | A |
| Depth of Cut Maximum (APMX) | 1″ | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 2″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1.91″ | Body Material | Steel |
| Flute Count (NOF) | 3 | Tool Type | 90° Extended flute shell mill |
| Overall Length (OAL) | 2″ | Unit | I |
| Master Insert Identification (MIID) | ADKT 1505PDTR |
Product Features
| Family Description | HELI2000, Extended flute shell mills carrying HM90 ADKT 1505... inserts. | FamilyName | SM |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
1.3448
Name
Shell Mills
FamilyName
SM
BrandName
Iscar
