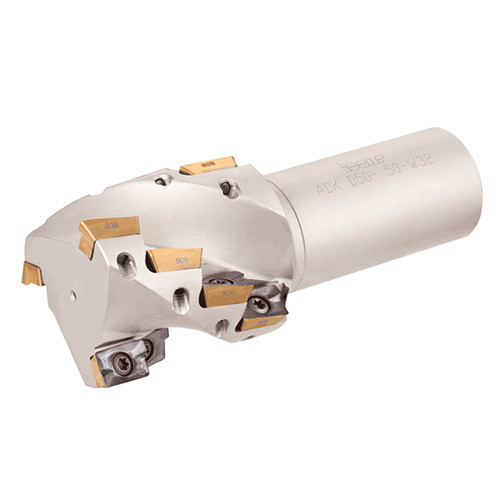

ADK D2.00-4.00-W1.50
Extended flute cutters with HELIMILL ADKT/R-15.. inserts .

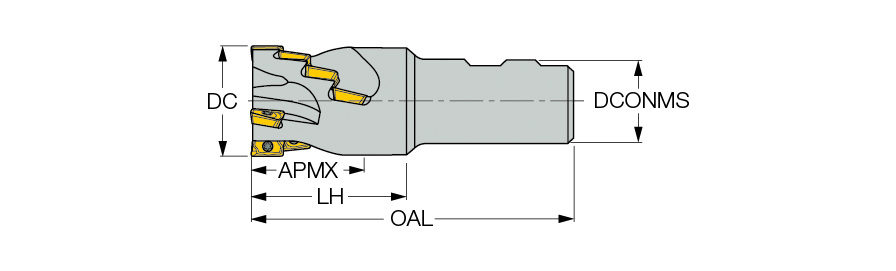

| Application | | Rampdown | Shouldering | Slotting | | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 16 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 4″ | Measurement Type | Inch |
| Cutting Diameter (DC) | 2″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Tool Type | 90° Extended flute endmills |
| Flute Count (NOF) | 2 | Connection Code Machine Side (CCMS) | Weldon |
| Overall Length (OAL) | 7-1/2″ | Unit | I |
| Master Insert Identification (MIID) | ADKT 1505PDTR |
Product Features
| Family Description | Extended flute cutters with HELIMILL ADKT/R-15.. inserts . | FamilyName | ADK |
| Remarks | For adaptation, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
4.2196
Name
Shell Mills
FamilyName
ADK
BrandName
Iscar
