BLP D32/1.25-M16

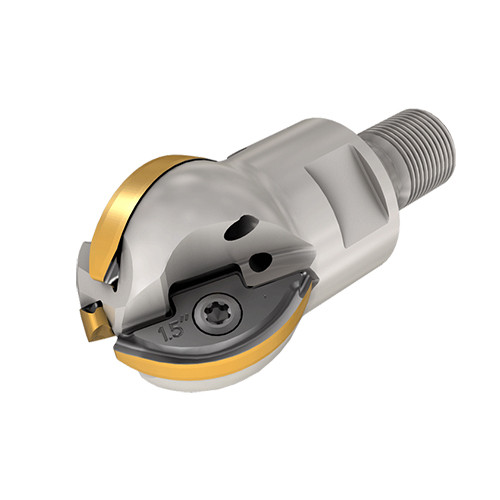

Three flute fully effective 240° ball nose endmills with FLEXFIT threaded adaptation, carrying double-sided inserts. Designed for roughing, semi finishing and finishing at high feed rates.

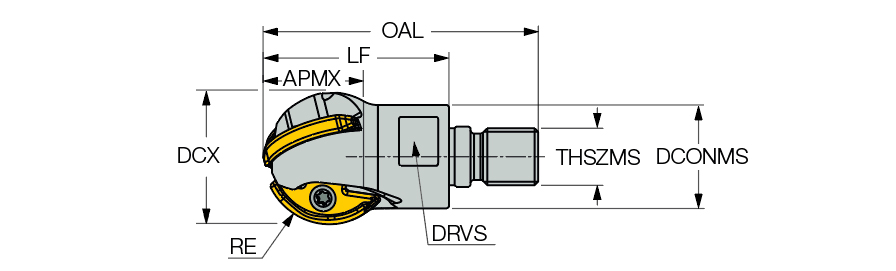

| Cutting Diameter (DC/DCX) | 32 mm | Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Cutting Diameter (DC) | 32 mm | Drive Size (DRVS) | 25 mm |
| Cutting Item Count (CICT) | 3 | Corner Radius (RE) | 16 mm |
| Depth of Cut Maximum (APMX) | 24 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 65 mm | Cutting Direction (HAND) | Right Hand |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 29 mm | Body Material | Steel |
| Master Insert Identification (MIID) | BLR D320-MFW | Connection Code Machine Side (CCMS) | FLEXFIT |
| Functional Length (LF) | 40 mm | Unit | M |
| Tool Type | Ball nose endmills |
Product Features
| Family Description | Three flute fully effective 240° ball nose endmills with FLEXFIT threaded adaptation, carrying double-sided inserts. Designed for roughing, semi finishing and finishing at high feed rates. | FamilyName | BLP-M |
| Remarks | For adaptation, click on More Info When mounting items with FLEXFIT threaded adaptation, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2270
Name
Indexable End Mills
FamilyName
BLP-M
BrandName
Iscar
