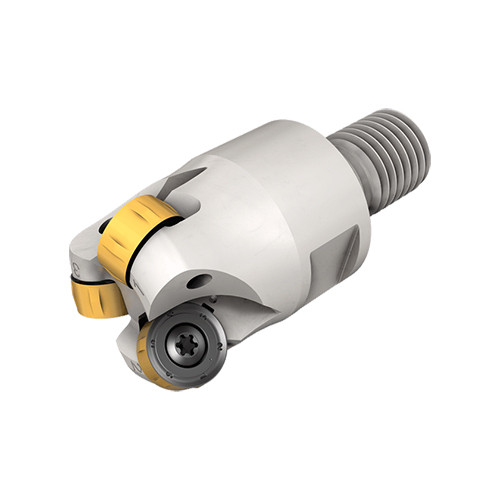

RDS ER D32/1.26-3-M16-12
Endmills with FLEXFIT threaded connection carrying double-sided round inserts with 12 cutting edges

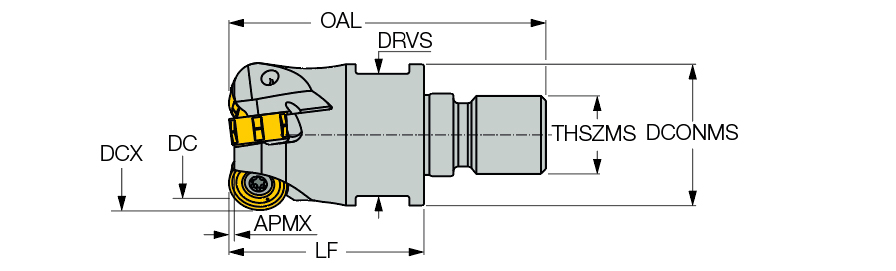

| Cutting Diameter (DC/DCX) | 20.06 mm | Tool Type | Round corner cutters |
| Cutting Diameter (DC) | 20.06 mm | Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Cutting Item Count (CICT) | 3 | Drive Size (DRVS) | 25 mm |
| Depth of Cut Maximum (APMX) | 2.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 65 mm | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 0.9 Degrees | Measurement Type | Metric |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 29 mm | Connection Code Machine Side (CCMS) | FLEXFIT |
| Master Insert Identification (MIID) | RDS RNMU1255EN-HP | Cutting Diameter Maximum (DCX) | 32 mm |
| Functional Length (LF) | 40 mm | Unit | M |
Product Features
| Family Description | Endmills with FLEXFIT threaded connection carrying double-sided round inserts with 12 cutting edges | FamilyName | RDS ER-M |
| Remarks | When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2590
Name
Indexable End Mills
FamilyName
RDS ER-M
BrandName
Iscar
