FFT3 EFMD.62-4-5.5C.62-03
Endmills carrying single-sided small trigon inserts for fast feed milling

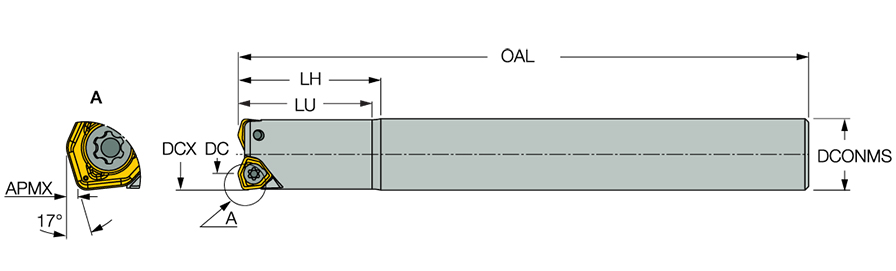

| Cutting Diameter (DC/DCX) | 5/8″ | Functional Length (LF) | 5-1/2″ |
| Cutting Diameter (DC) | 0.45″ | Usable Length (LU) | 1.164″ |
| Cutting Item Count (CICT) | 4 | Torque (TQ) | 4.5 lbfxin |
| Depth of Cut Maximum (APMX) | 0.0236″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 5-1/2″ | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Shank Type | Round | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 2.5 Degrees | Body Material | Steel |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Connection Code Machine Side (CCMS) | Cylindrical |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Cutting Diameter Maximum (DCX) | 5/8″ |
| Master Insert Identification (MIID) | FFT3 WXMT 030206T | Unit | I |
| Head Length (LH) | 1-1/4″ |
Product Features
| Family Description | Endmills carrying single-sided small trigon inserts for fast feed milling | FamilyName | FFT3 EFM-03 |
| Remarks | Radius for programming .04 To generate a straight surface without cusps, the width of cut must not exceed DC | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.4784
Name
Indexable End Mills
FamilyName
FFT3 EFM-03
BrandName
Iscar
