HM390 ETP D.38-3-C.38-04

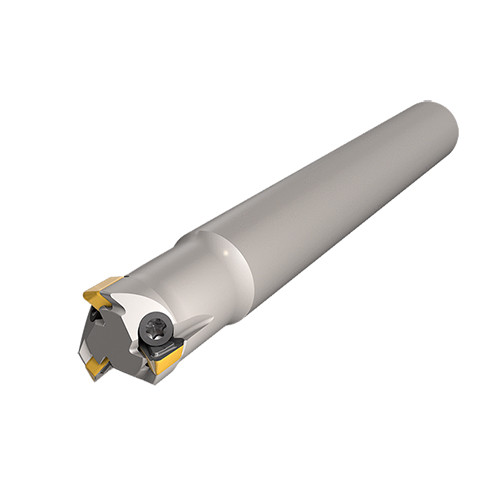

90° small diameter endmills carrying HM390 TPKR 0401 triangular inserts with 3 helical cutting edges

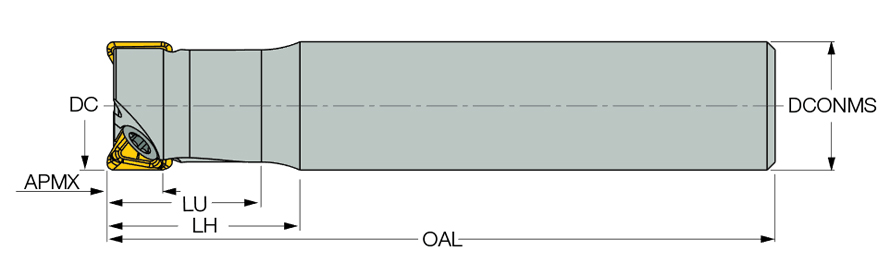

| Cutting Diameter (DC/DCX) | 3/8″ | Head Length (LH) | 0.56″ |
| Cutting Diameter (DC) | 3/8″ | Functional Length (LF) | 3″ |
| Cutting Item Count (CICT) | 3 | Usable Length (LU) | 0.4685″ |
| Depth of Cut Maximum (APMX) | 0.12″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 3″ | Measurement Type | Inch |
| Shank Type | Round | Body Material | Steel |
| Ramping Angle Maximum (RMPX) | 2.6 Degrees | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Unit | I |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
Product Features
| Family Description | 90° small diameter endmills carrying HM390 TPKR 0401 triangular inserts with 3 helical cutting edges | FamilyName | HM390 ETP-04 |
| Remarks | Items Per Package: 1 Tightening torque 4.4 Lbf x in | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1543
Name
Indexable End Mills
FamilyName
HM390 ETP-04
BrandName
Iscar
