FFQ4 D035-05-M16-09
Fast feed endmills with FLEXFIT threaded adaptation carrying single-sided square Inserts with 4 cutting edges

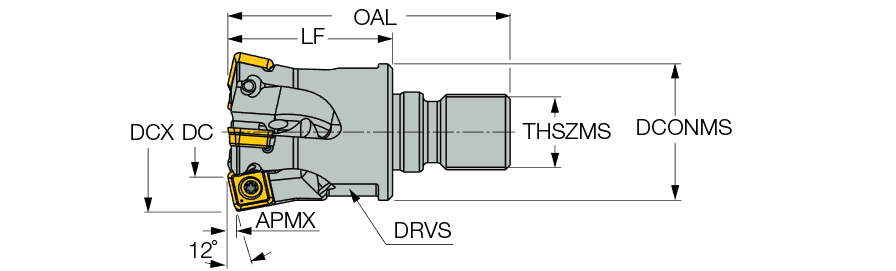

| Cutting Diameter (DC/DCX) | 35 mm | Drive Size (DRVS) | 25 mm |
| Cutting Diameter (DC) | 20.7 mm | Torque (TQ) | 2 Nxm |
| Cutting Item Count (CICT) | 5 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 1.2 mm | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Overall Length (OAL) | 60 mm | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 2.7 Degrees | Measurement Type | Metric |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 29 mm | Connection Code Machine Side (CCMS) | FLEXFIT |
| Master Insert Identification (MIID) | FFQ4 SOMT 090412T | Cutting Diameter Maximum (DCX) | 35 mm |
| Functional Length (LF) | 35 mm | Unit | M |
| Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
Product Features
| Family Description | Fast feed endmills with FLEXFIT threaded adaptation carrying single-sided square Inserts with 4 cutting edges | FamilyName | FFQ4 D-M-09 |
| Remarks | To generate a straight surface without cusps, the width of cut must not exceed DC Radius for programming: for insert SOMT 2.5 mm, for insert SOMW 3 mm When mounting insert SOMW, APMX=1.0 mm For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 50% For cutting conditions click on More info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2390
Name
Indexable End Mills
FamilyName
FFQ4 D-M-09
BrandName
Iscar
Related Documentation
When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter
