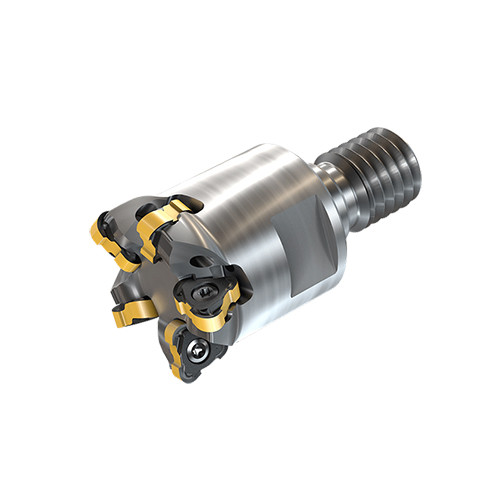

TR6 ER D35/1.38-5-M16-10
Multifunction endmills with FLEXFIT threaded adaptation that carry four different insert geometries.
| Cutting Diameter (DC/DCX) | 35 mm | Drive Size (DRVS) | 25 mm |
| Cutting Diameter (DC) | 30 mm | Body Half Taper Angle (BHTA) | 17 Degrees |
| Cutting Item Count (CICT) | 5 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 2.5 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 60 mm | Measurement Type | Metric |
| Application | | Facing | Fast Feed Milling | Profiling | Shouldering | Slanted Shoulder & Chamfer | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 29 mm | Connection Code Machine Side (CCMS) | FLEXFIT |
| Master Insert Identification (MIID) | TR6 TNCU 100425 | Cutting Diameter Maximum (DCX) | 35 mm |
| Functional Length (LF) | 34.97 mm | Unit | M |
| Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
Product Features
| Family Description | Multifunction endmills with FLEXFIT threaded adaptation that carry four different insert geometries. | FamilyName | TR6 ER-M |

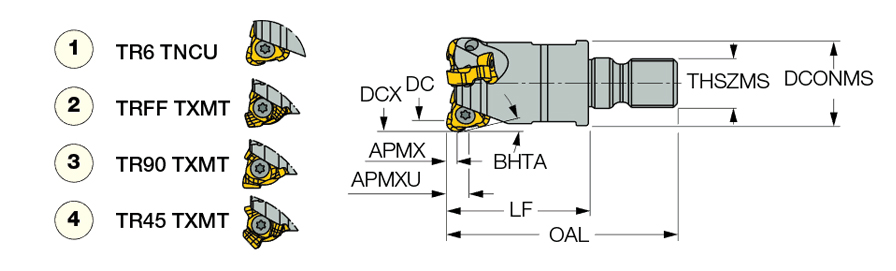

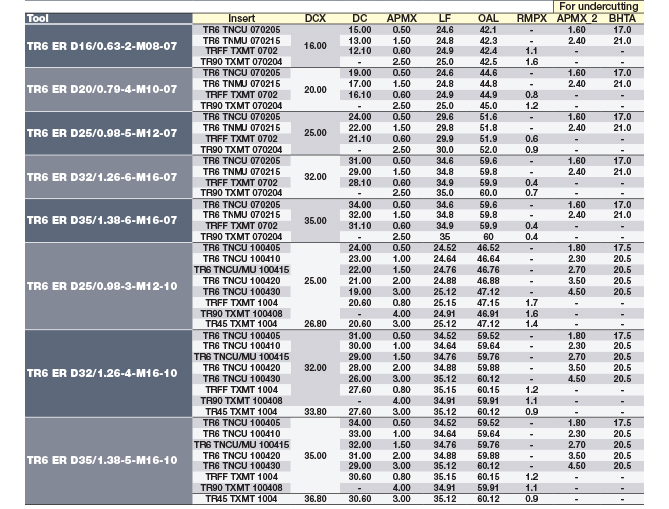

| Remarks | Note: The dimensions refer to master inserts, for other insert radii and geometries dimensions click on More Info When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2450
Name
Indexable End Mills
FamilyName
TR6 ER-M
BrandName
Iscar
