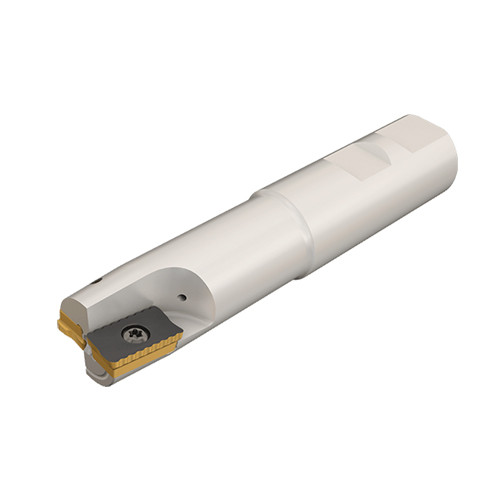

P290 EPW D20-2-100-W20-12
Long reach endmills carrying 12 and 18 mm long edged inserts.

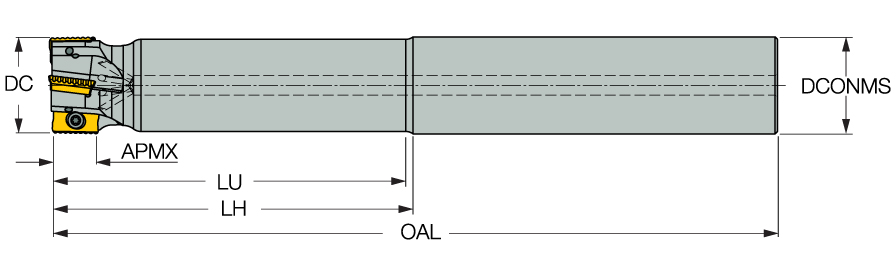

Cutting Diameter (DC/DCX) | 20 mm | Functional Length (LF) | 75 mm |
Cutting Diameter (DC) | 20 mm | Tool Type | 90° indexable endmills |
Cutting Item Count (CICT) | 2 | Usable Length (LU) | 37 mm |
Depth of Cut Maximum (APMX) | 12 mm | Flute Count (NOF) | 2 |
Overall Length (OAL) | 100 mm | Coolant Supply Property (CSP) | Coolant Thru |
Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
Ramping Angle Maximum (RMPX) | 2 Degrees | Cutting Direction (HAND) | Right Hand |
Application | | Rampdown | Shouldering | | Measurement Type | Metric |
Connection Diameter Machine Side (DCONMS) | 20 mm | Body Material | Steel |
Master Insert Identification (MIID) | P290 ACKT 1204PDR-FW | Connection Code Machine Side (CCMS) | Weldon |
Head Length (LH) | 40 mm | Unit | M |


Product Features
Family Description | Long reach endmills carrying 12 and 18 mm long edged inserts. | FamilyName | P290 EPW |
Remarks | For adaptation, click on More Info. | BrandName | Iscar |
COO | Israel |
Shipping Info
Weight per item
0.2630
Name
Indexable End Mills
FamilyName
P290 EPW
BrandName
Iscar
