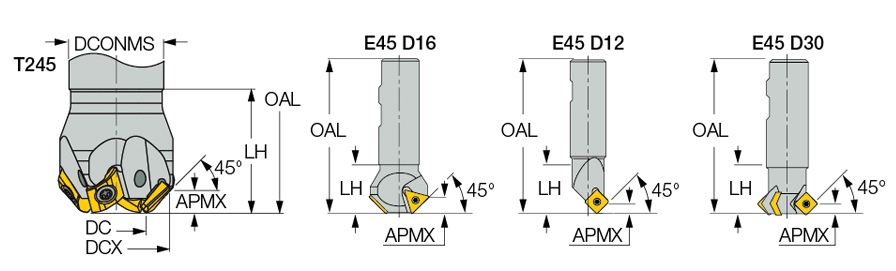

| Cutting Diameter (DC/DCX) | 30 mm | Functional Length (LF) | 115 mm |
| Cutting Diameter (DC) | 30 mm | Tool Type | Chamfering endmills |
| Cutting Item Count (CICT) | 3 | Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 7.8 mm | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Overall Length (OAL) | 115 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Measurement Type | Metric |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Body Material | Steel |
| Application | | Chamfering & Bottom Deburring | Countersinking | Slanted Shoulder & Chamfer | | Connection Code Machine Side (CCMS) | Cylindrical |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Cutting Diameter Maximum (DCX) | 46.1 mm |
| Master Insert Identification (MIID) | SCMT 120408-19 | Unit | M |
| Head Length (LH) | 3 mm |
Product Features
| Family Description | 45° chamfering endmills. | FamilyName | E45 / T245 |
| Remarks | For adaptation, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.7520
Name
Indexable End Mills
FamilyName
E45 / T245
BrandName
Iscar
