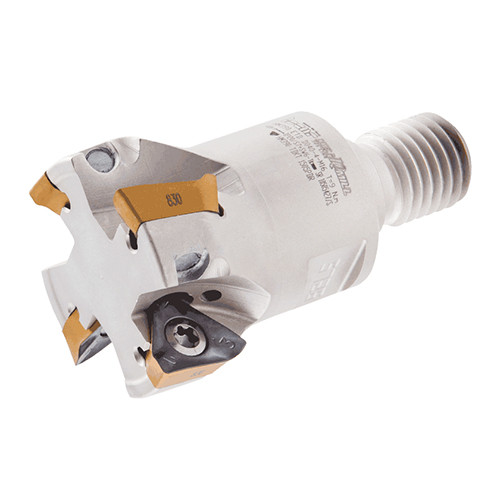

HM390 ETD D040-4-M16

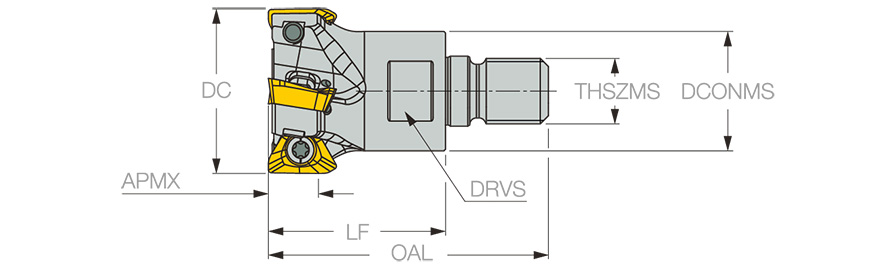

| Cutting Diameter (DC/DCX) | 40 mm | Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Cutting Diameter (DC) | 40 mm | Drive Size (DRVS) | 25 mm |
| Cutting Item Count (CICT) | 4 | Flute Count (NOF) | 4 |
| Depth of Cut Maximum (APMX) | 13 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 68 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 1.6 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 29 mm | Body Material | Steel |
| Master Insert Identification (MIID) | HM390 TDKT 1505PDR | Connection Code Machine Side (CCMS) | FLEXFIT |
| Functional Length (LF) | 43 mm | Unit | M |
| Tool Type | 90° indexable endmills |
Product Features
| Family Description | 90° endmills with a FLEXFIT threaded adaptation carrying HM390 TDKT 1505 triangular inserts with 3 helical cutting edges. | FamilyName | HM390 ETD-M |
| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. When assembled the HM390 TDKT 1505PDR-FW insert, tool diameter enlarges by 1.0 mm RMPX refer to HM390 TDKT 1505PDR insert For adaptation, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.3210
Name
Indexable End Mills
FamilyName
HM390 ETD-M
BrandName
Iscar
