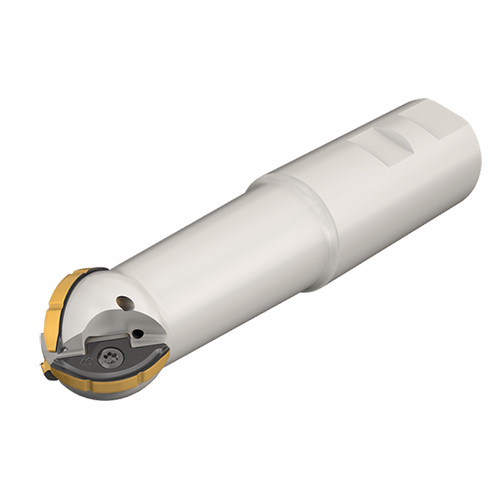

BLP D20-70-130-C20
Three flute fully effective 240° ball nose endmills carrying double-sided inserts. Designed for roughing, semi finishing and finishing at high feed rates.

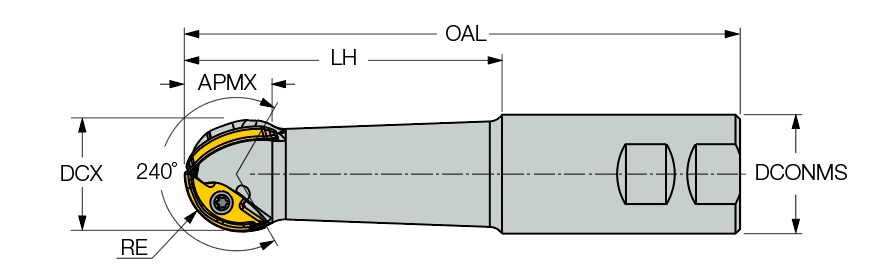

| Cutting Diameter (DC/DCX) | 20 mm | Functional Length (LF) | 130 mm |
| Cutting Diameter (DC) | 20 mm | Tool Type | Ball nose endmills |
| Cutting Item Count (CICT) | 3 | Corner Radius (RE) | 10 mm |
| Depth of Cut Maximum (APMX) | 15 mm | Body Half Taper Angle (BHTA) | 240 Degrees |
| Overall Length (OAL) | 130 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Body Material | Steel |
| Master Insert Identification (MIID) | BLR D200-MFW | Connection Code Machine Side (CCMS) | Cylindrical |
| Head Length (LH) | 70 mm | Unit | M |
Product Features
| Family Description | Three flute fully effective 240° ball nose endmills carrying double-sided inserts. Designed for roughing, semi finishing and finishing at high feed rates. | FamilyName | BLP Endmills |
| Remarks | For adaptation, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.3100
Name
Indexable End Mills
FamilyName
BLP Endmills
BrandName
Iscar
