FF EWX D32-3-070-C32-07

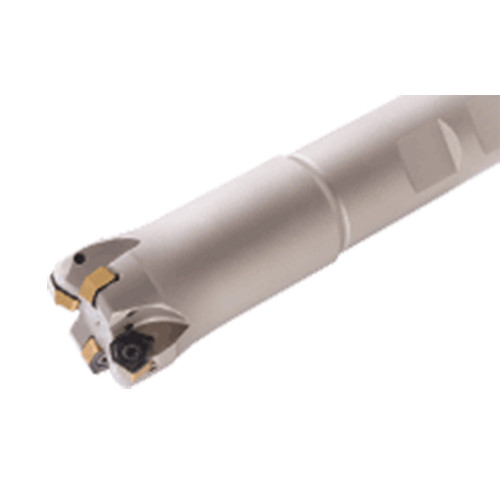

HELIDO UPFEED endmills for fast feed, carrying double-sided Inserts with 6 cutting edges.

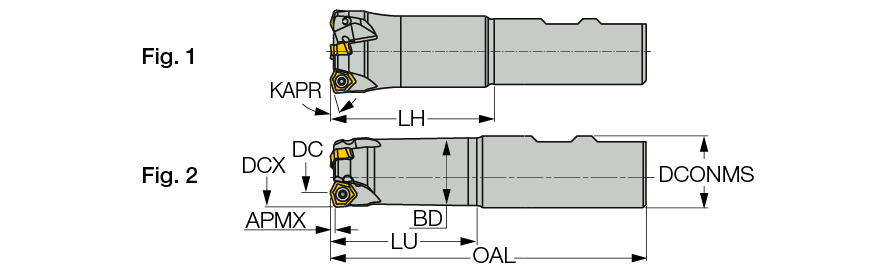

| Cutting Diameter (DC/DCX) | 19 mm | Usable Length (LU) | 70 mm |
| Cutting Diameter (DC) | 19 mm | Flute Count (NOF) | 3 |
| Cutting Item Count (CICT) | 3 | Torque (TQ) | 4.8 Nxm |
| Depth of Cut Maximum (APMX) | 1.5 mm | Body Diameter (BD) | 30.7 mm |
| Overall Length (OAL) | 155 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Ramping Angle Maximum (RMPX) | 6.3 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Master Insert Identification (MIID) | H600 WXCU 070515T | Connection Code Machine Side (CCMS) | Cylindrical |
| Head Length (LH) | 73 mm | Cutting Diameter Maximum (DCX) | 32 mm |
| Functional Length (LF) | 155 mm | Unit | M |
| Tool Type | Fast Feed Endmill |
Product Features
| Family Description | HELIDO UPFEED endmills for fast feed, carrying double-sided Inserts with 6 cutting edges. | FamilyName | FF EWX |

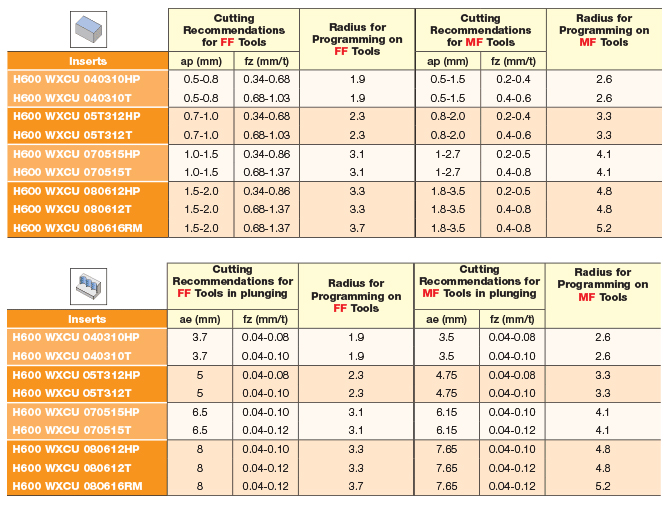

| Remarks | For machining recommendations, radius for programming and adaptation click on More Info To generate a straight surface without cusps, the width of cut must not exceed DC | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.8470
Name
Indexable End Mills
FamilyName
FF EWX
BrandName
Iscar
